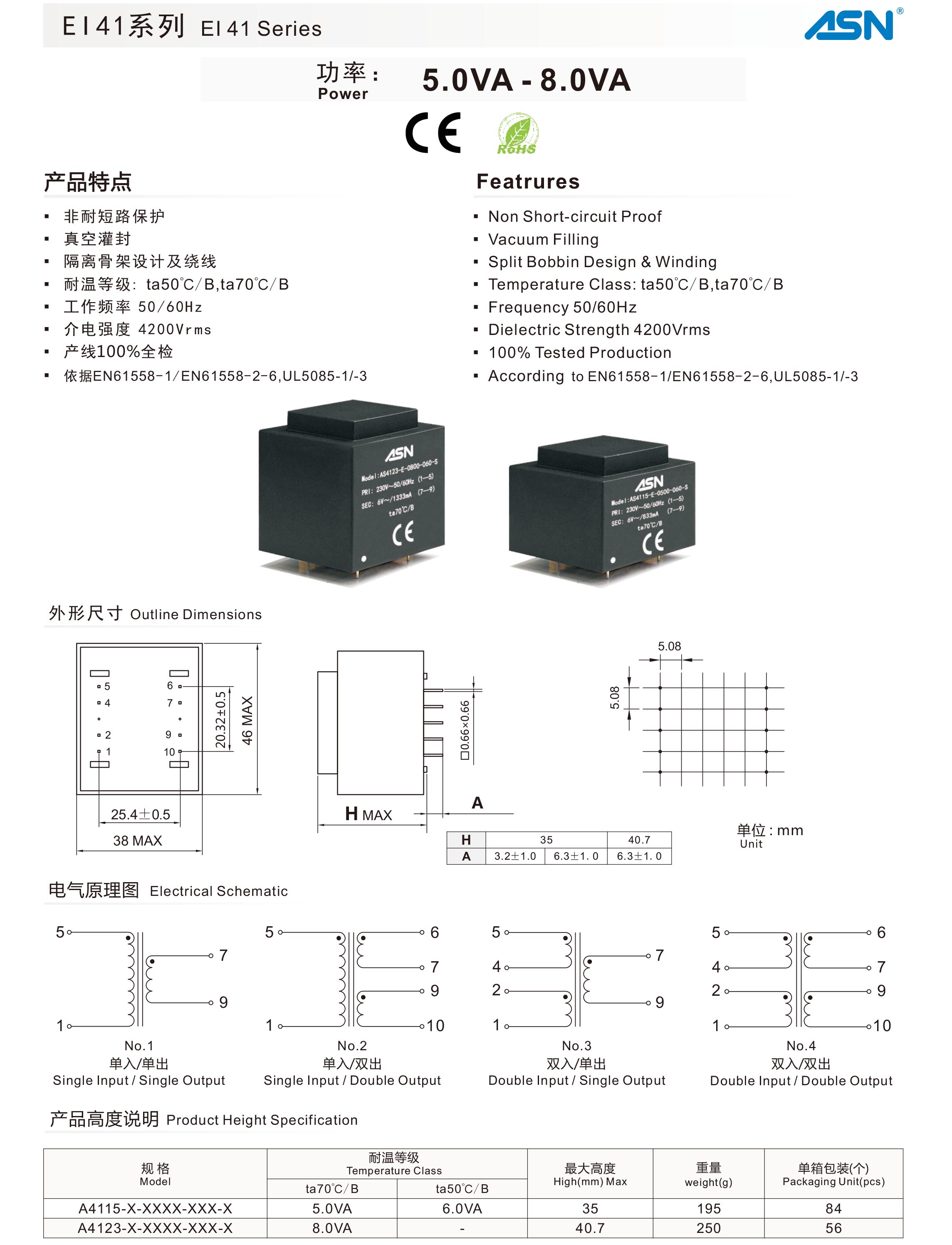

EI41系列（5.0W~8.0W）





选 型 参 考



产品型号

初级电压

（ V ）

次级空载电压

( V )

次级负载电压

( V/mA )

 脚位 原理图号 耐温等级 认 证
  EI41×15.5  5.0VA　　 VDE UL CQC CE
AS4115-E-0500-060-S 230 8.5  6/833 1+5/7+9 1 ta70℃/B       ●
AS4115-E-0500-090-S 230 12.5  9/556 1+5/7+9 1 ta70℃/B       ●
AS4115-E-0500-120-S 230 16.5  12/417 1+5/7+9 1 ta70℃/B       ●
AS4115-E-0500-150-S 230 21.0  15/333 1+5/7+9 1 ta70℃/B       ●
AS4115-E-0500-180-S 230 24.5  18/278 1+5/7+9 1 ta70℃/B       ●
AS4115-E-0500-240-S 230 32.5  24/208 1+5/7+9 1 ta70℃/B       ●
AS4115-E-0500-060-D 230 2x8.5 2x6/417 1+5/6+7-9+10 2 ta70℃/B       ●
AS4115-E-0500-075-D 230 2x10.5 2x7.5/333 1+5/6+7-9+10 2 ta70℃/B       ●
AS4115-E-0500-090-D 230 2x12.5 2x9/278 1+5/6+7-9+10 2 ta70℃/B       ●
AS4115-E-0500-120-D 230 2x16.5 2x12/208 1+5/6+7-9+10 2 ta70℃/B       ●
AS4115-E-0500-150-D 230 2x21.0 2x15/167 1+5/6+7-9+10 2 ta70℃/B       ●
AS4115-E-0500-180-D 230 2x24.5 2x18/139 1+5/6+7-9+10 2 ta70℃/B       ●
AS4115-E-0500-240-D 230 2x32.5 2x24/104 1+5/6+7-9+10 2 ta70℃/B       ●
AS4115-U-0500-060-S 115 8.5  6/833 1+5/7+9 1 ta70℃/B       ●
AS4115-U-0500-090-S 115 12.5  9/556 1+5/7+9 1 ta70℃/B       ●
AS4115-U-0500-120-S 115 16.5  12/417 1+5/7+9 1 ta70℃/B       ●
AS4115-U-0500-150-S 115 21.0  15/333 1+5/7+9 1 ta70℃/B       ●
AS4115-U-0500-180-S 115 24.5  18/278 1+5/7+9 1 ta70℃/B       ●
AS4115-U-0500-240-S 115 32.5  24/208 1+5/7+9 1 ta70℃/B       ●
AS4115-U-0500-060-D 115 2x8.5 2x6/417 1+5/6+7-9+10 2 ta70℃/B       ●
AS4115-U-0500-075-D 115 2x10.5 2x7.5/333 1+5/6+7-9+10 2 ta70℃/B       ●
AS4115-U-0500-090-D 115 2x12.5 2x9/278 1+5/6+7-9+10 2 ta70℃/B       ●
AS4115-U-0500-120-D 115 2x16.5 2x12/208 1+5/6+7-9+10 2 ta70℃/B       ●
AS4115-U-0500-150-D 115 2x21.0 2x15/167 1+5/6+7-9+10 2 ta70℃/B       ●
AS4115-U-0500-180-D 115 2x24.5 2x18/139 1+5/6+7-9+10 2 ta70℃/B       ●
AS4115-U-0500-240-D 115 2x32.5 2x24/104 1+5/6+7-9+10 2 ta70℃/B       ●
AS4115-U2-0500-060-S 2x115 8.5  6/833 1+2-4+5/7+9 3 ta70℃/B       ●
AS4115-U2-0500-090-S 2x115 12.5  9/556 1+2-4+5/7+9 3 ta70℃/B       ●
AS4115-U2-0500-120-S 2x115 16.5  12/417 1+2-4+5/7+9 3 ta70℃/B       ●
AS4115-U2-0500-150-S 2x115 21.0  15/333 1+2-4+5/7+9 3 ta70℃/B       ●
AS4115-U2-0500-180-S 2x115 24.5  18/278 1+2-4+5/7+9 3 ta70℃/B       ●
AS4115-U2-0500-240-S 2x115 32.5  24/208 1+2-4+5/7+9 3 ta70℃/B       ●
AS4115-U2-0500-060-D 2x115 2x8.5 2x6/417 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS4115-U2-0500-090-D 2x115 2x12.5 2x9/278 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS4115-U2-0500-120-D 2x115 2x16.5 2x12/208 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS4115-U2-0500-150-D 2x115 2x21.0 2x15/167 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS4115-U2-0500-180-D 2x115 2x24.5 2x18/139 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS4115-U2-0500-240-D 2x115 2x32.5 2x24/104 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
  EI41×15.5  6.0VA　　 VDE UL CQC CE
AS4115-E-0600-060-S 230 8.5  6/1000 1+5/7+9 1 ta50℃/B       ●
AS4115-E-0600-090-S 230 12.8  9/667 1+5/7+9 1 ta50℃/B       ●
AS4115-E-0600-120-S 230 17.0  12/500 1+5/7+9 1 ta50℃/B       ●
AS4115-E-0600-150-S 230 21.5  15/400 1+5/7+9 1 ta50℃/B       ●
AS4115-E-0600-180-S 230 25.5  18/333 1+5/7+9 1 ta50℃/B       ●
AS4115-E-0600-240-S 230 34.0  24/250 1+5/7+9 1 ta50℃/B       ●
AS4115-E-0600-060-D 230 2x8.5 2x6/500 1+5/6+7-9+10 2 ta50℃/B       ●
AS4115-E-0600-075-D 230 2x10.5 2x7.5/400 1+5/6+7-9+10 2 ta50℃/B       ●
AS4115-E-0600-090-D 230 2x12.8 2x9/333 1+5/6+7-9+10 2 ta50℃/B       ●
AS4115-E-0600-120-D 230 2x17.0 2x12/250 1+5/6+7-9+10 2 ta50℃/B       ●
AS4115-E-0600-150-D 230 2x21.5 2x15/200 1+5/6+7-9+10 2 ta50℃/B       ●
AS4115-E-0600-180-D 230 2x25.5 2x18/167 1+5/6+7-9+10 2 ta50℃/B       ●
AS4115-E-0600-240-D 230 2x34.0 2x24/125 1+5/6+7-9+10 2 ta50℃/B       ●
AS4115-U-0600-060-S 115 8.5  6/1000 1+5/7+9 1 ta50℃/B       ●
AS4115-U-0600-090-S 115 12.8  9/667 1+5/7+9 1 ta50℃/B       ●
AS4115-U-0600-120-S 115 17.0  12/500 1+5/7+9 1 ta50℃/B       ●
AS4115-U-0600-150-S 115 21.5  15/400 1+5/7+9 1 ta50℃/B       ●
AS4115-U-0600-180-S 115 25.5  18/333 1+5/7+9 1 ta50℃/B       ●
AS4115-U-0600-240-S 115 34.0  24/250 1+5/7+9 1 ta50℃/B       ●
AS4115-U-0600-060-D 115 2x8.5 2x6/500 1+5/6+7-9+10 2 ta50℃/B       ●
AS4115-U-0600-075-D 115 2x10.5 2x7.5/400 1+5/6+7-9+10 2 ta50℃/B       ●
AS4115-U-0600-090-D 115 2x12.8 2x9/333 1+5/6+7-9+10 2 ta50℃/B       ●
AS4115-U-0600-120-D 115 2x17.0 2x12/250 1+5/6+7-9+10 2 ta50℃/B       ●
AS4115-U-0600-150-D 115 2x21.5 2x15/200 1+5/6+7-9+10 2 ta50℃/B       ●
AS4115-U-0600-180-D 115 2x25.5 2x18/167 1+5/6+7-9+10 2 ta50℃/B       ●
AS4115-U-0600-240-D 115 2x34.0 2x24/125 1+5/6+7-9+10 2 ta50℃/B       ●
AS4115-U2-0600-060-S 2x115 8.5  6/1000 1+2-4+5/7+9 3 ta50℃/B       ●
AS4115-U2-0600-090-S 2x115 12.8  9/667 1+2-4+5/7+9 3 ta50℃/B       ●
AS4115-U2-0600-120-S 2x115 17.0  12/500 1+2-4+5/7+9 3 ta50℃/B       ●
AS4115-U2-0600-150-S 2x115 21.5  15/400 1+2-4+5/7+9 3 ta50℃/B       ●
AS4115-U2-0600-180-S 2x115 25.5  18/333 1+2-4+5/7+9 3 ta50℃/B       ●
AS4115-U2-0600-240-S 2x115 34.0  24/250 1+2-4+5/7+9 3 ta50℃/B       ●
AS4115-U2-0600-060-D 2x115 2x8.5 2x6/500 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
AS4115-U2-0600-090-D 2x115 2x12.8 2x9/333 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
AS4115-U2-0600-120-D 2x115 2x17.0 2x12/250 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
AS4115-U2-0600-150-D 2x115 2x21.5 2x15/200 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
AS4115-U2-0600-180-D 2x115 2x25.5 2x18/167 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
AS4115-U2-0600-240-D 2x115 2x34.0 2x24/125 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
   EI41×23  8.0VA　　 VDE UL CQC CE
AS4123-E-0800-060-S 230 8.5  6/1333 1+5/7+9 1 ta70℃/B       ●
AS4123-E-0800-090-S 230 12.5  9/889 1+5/7+9 1 ta70℃/B       ●
AS4123-E-0800-120-S 230 16.5  12/667 1+5/7+9 1 ta70℃/B       ●
AS4123-E-0800-150-S 230 21.0  15/533 1+5/7+9 1 ta70℃/B       ●
AS4123-E-0800-180-S 230 24.5  18/444 1+5/7+9 1 ta70℃/B       ●
AS4123-E-0800-240-S 230 32.5  24/333 1+5/7+9 1 ta70℃/B       ●
AS4123-E-0800-060-D 230 2x8.5 2x6/667 1+5/6+7-9+10 2 ta70℃/B       ●
AS4123-E-0800-075-D 230 2x10.5 2x7.5/533 1+5/6+7-9+10 2 ta70℃/B       ●
AS4123-E-0800-090-D 230 2x12.5 2x9/444 1+5/6+7-9+10 2 ta70℃/B       ●
AS4123-E-0800-120-D 230 2x16.5 2x12/333 1+5/6+7-9+10 2 ta70℃/B       ●
AS4123-E-0800-150-D 230 2x21.0 2x15/267 1+5/6+7-9+10 2 ta70℃/B       ●
AS4123-E-0800-180-D 230 2x24.5 2x18/222 1+5/6+7-9+10 2 ta70℃/B       ●
AS4123-E-0800-240-D 230 2x32.5 2x24/167 1+5/6+7-9+10 2 ta70℃/B       ●
AS4123-U-0800-060-S 115 8.5  6/1333 1+5/7+9 1 ta70℃/B       ●
AS4123-U-0800-090-S 115 12.5  9/889 1+5/7+9 1 ta70℃/B       ●
AS4123-U-0800-120-S 115 16.5  12/667 1+5/7+9 1 ta70℃/B       ●
AS4123-U-0800-150-S 115 21.0  15/533 1+5/7+9 1 ta70℃/B       ●
AS4123-U-0800-180-S 115 24.5  18/444 1+5/7+9 1 ta70℃/B       ●
AS4123-U-0800-240-S 115 32.5  24/333 1+5/7+9 1 ta70℃/B       ●
AS4123-U-0800-060-D 115 2x8.5 2x6/667 1+5/6+7-9+10 2 ta70℃/B       ●
AS4123-U-0800-075-D 115 2x10.5 2x7.5/533 1+5/6+7-9+10 2 ta70℃/B       ●
AS4123-U-0800-090-D 115 2x12.5 2x9/444 1+5/6+7-9+10 2 ta70℃/B       ●
AS4123-U-0800-120-D 115 2x16.5 2x12/333 1+5/6+7-9+10 2 ta70℃/B       ●
AS4123-U-0800-150-D 115 2x21.0 2x15/267 1+5/6+7-9+10 2 ta70℃/B       ●
AS4123-U-0800-180-D 115 2x24.5 2x18/222 1+5/6+7-9+10 2 ta70℃/B       ●
AS4123-U-0800-240-D 115 2x32.5 2x24/167 1+5/6+7-9+10 2 ta70℃/B       ●
AS4123-U2-0800-060-S 2x115 8.5  6/1333 1+2-4+5/7+9 3 ta70℃/B       ●
AS4123-U2-0800-090-S 2x115 12.5  9/889 1+2-4+5/7+9 3 ta70℃/B       ●
AS4123-U2-0800-120-S 2x115 16.5  12/667 1+2-4+5/7+9 3 ta70℃/B       ●
AS4123-U2-0800-150-S 2x115 21.0  15/533 1+2-4+5/7+9 3 ta70℃/B       ●
AS4123-U2-0800-180-S 2x115 24.5 18/444 1+2-4+5/7+9 3 ta70℃/B       ●
AS4123-U2-0800-240-S 2x115 32.5 24/333 1+2-4+5/7+9 3 ta70℃/B       ●
AS4123-U2-0800-060-D 2x115 2x8.5 2x6/667 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS4123-U2-0800-090-D 2x115 2x12.5 2x9/444 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS4123-U2-0800-120-D 2x115 2x16.5 2x12/333 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS4123-U2-0800-150-D 2x115 2x21.0 2x15/267 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS4123-U2-0800-180-D 2x115 2x24.5 2x18/222 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS4123-U2-0800-240-D 2x115 2x32.5 2x24/167 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
