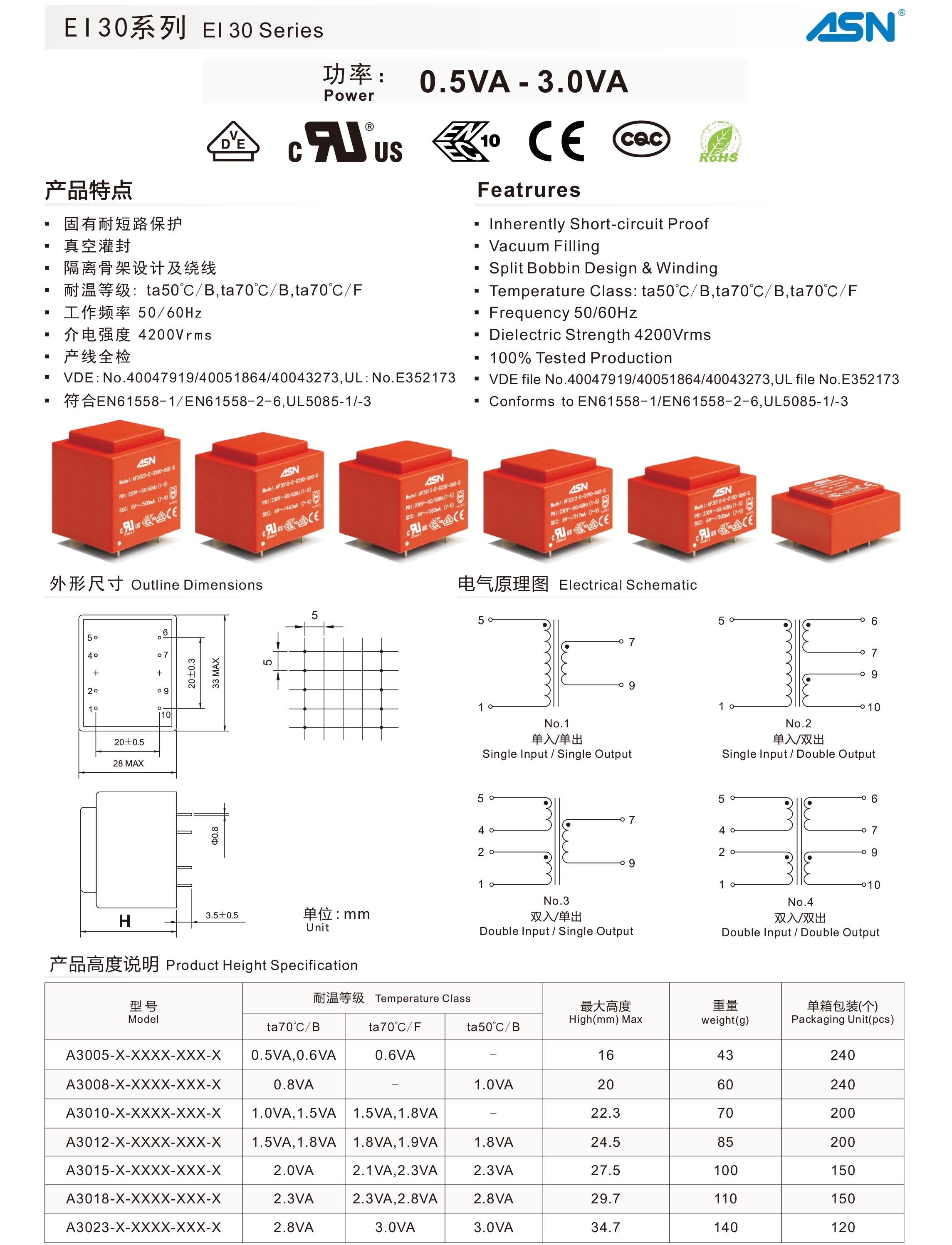

EI30系列（0.5W-3.0W）





选 型 参 考



产品型号 初级电压 次级空载电压 次级负载电压 脚位 原理图号 耐温等级 认 证
   EI30×5 0.5VA　 VDE UL CQC CE
AS3005-E-0050-060-S 230 9.7  6/83 1+5/7+9 1 ta70℃/B ● ●   ●
AS3005-E-0050-090-S 230 14.5  9/56 1+5/7+9 1 ta70℃/B ● ●   ●
AS3005-E-0050-120-S 230 20.5  12/42 1+5/7+9 1 ta70℃/B ● ●   ●
AS3005-E-0050-150-S 230 24.6  15/33 1+5/7+9 1 ta70℃/B ● ●   ●
AS3005-E-0050-180-S 230 28.4  18/28 1+5/7+9 1 ta70℃/B ● ●   ●
AS3005-E-0050-240-S 230 37.0  24/21 1+5/7+9 1 ta70℃/B ● ●   ●
AS3005-E-0050-060-D 230 2x10.1 2x6/42 1+5/6+7-9+10 2 ta70℃/B ●     ●
AS3005-E-0050-075-D 230 2x12.3 2x7.5/33 1+5/6+7-9+10 2 ta70℃/B ●     ●
AS3005-E-0050-090-D 230 2x15.6 2x9/28 1+5/6+7-9+10 2 ta70℃/B ●     ●
AS3005-E-0050-120-D 230 2x19.9 2x12/21 1+5/6+7-9+10 2 ta70℃/B ●     ●
AS3005-E-0050-150-D 230 2x23.3 2x15/17 1+5/6+7-9+10 2 ta70℃/B ●     ●
AS3005-E-0050-180-D 230 2x27.9 2x18/14 1+5/6+7-9+10 2 ta70℃/B       ●
AS3005-E-0050-240-D 230 2x37.2 2x24/10 1+5/6+7-9+10 2 ta70℃/B       ●
AS3005-U-0050-060-S 115 9.7  6/83 1+5/7+9 1 ta70℃/B   ●   ●
AS3005-U-0050-090-S 115 14.5  9/56 1+5/7+9 1 ta70℃/B   ●   ●
AS3005-U-0050-120-S 115 20.5  12/42 1+5/7+9 1 ta70℃/B   ●   ●
AS3005-U-0050-150-S 115 24.6  15/33 1+5/7+9 1 ta70℃/B   ●   ●
AS3005-U-0050-180-S 115 28.4  18/28 1+5/7+9 1 ta70℃/B   ●   ●
AS3005-U-0050-240-S 115 37.0  24/21 1+5/7+9 1 ta70℃/B   ●   ●
AS3005-U-0050-060-D 115 2x10.1 2x6/42 1+5/6+7-9+10 2 ta70℃/B       ●
AS3005-U-0050-075-D 115 2x12.3 2x7.5/33 1+5/6+7-9+10 2 ta70℃/B       ●
AS3005-U-0050-090-D 115 2x15.6 2x9/28 1+5/6+7-9+10 2 ta70℃/B       ●
AS3005-U-0050-120-D 115 2x19.9 2x12/21 1+5/6+7-9+10 2 ta70℃/B       ●
AS3005-U-0050-150-D 115 2x23.3 2x15/17 1+5/6+7-9+10 2 ta70℃/B       ●
AS3005-U-0050-180-D 115 2x27.9 2x18/14 1+5/6+7-9+10 2 ta70℃/B       ●
AS3005-U-0050-240-D 115 2x37.2 2x24/10 1+5/6+7-9+10 2 ta70℃/B       ●
AS3005-U2-0050-060-S 2x115 9.7  6/83 1+2-4+5/7+9 3 ta70℃/B       ●
AS3005-U2-0050-090-S 2x115 14.5  9/56 1+2-4+5/7+9 3 ta70℃/B       ●
AS3005-U2-0050-120-S 2x115 20.5  12/42 1+2-4+5/7+9 3 ta70℃/B       ●
AS3005-U2-0050-150-S 2x115 24.6  15/33 1+2-4+5/7+9 3 ta70℃/B       ●
AS3005-U2-0050-180-S 2x115 28.4  18/28 1+2-4+5/7+9 3 ta70℃/B       ●
AS3005-U2-0050-240-S 2x115 37.0  24/21 1+2-4+5/7+9 3 ta70℃/B       ●
AS3005-U2-0050-060-D 2x115 2x10.1 2x6/42 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3005-U2-0050-090-D 2x115 2x15.6 2x9/28 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3005-U2-0050-120-D 2x115 2x19.9 2x12/21 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3005-U2-0050-150-D 2x115 2x23.3 2x15/17 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3005-U2-0050-180-D 2x115 2x27.9 2x18/14 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3005-U2-0050-240-D 2x115 2x37.2 2x24/10 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
   EI30×5  0.6VA　　 VDE UL CQC CE
AS3005-E-0060-060-S 230 9.7  6/100 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3005-E-0060-090-S 230 14.5  9/67 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3005-E-0060-120-S 230 20.5  12/50 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3005-E-0060-150-S 230 24.6  15/40 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3005-E-0060-180-S 230 28.4  18/33 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3005-E-0060-240-S 230 37.0  24/25 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3005-E-0060-060-D 230 2x10.1 2x6/50 1+5/6+7-9+10 2 ta70℃/B       ●
AS3005-E-0060-075-D 230 2x12.3 2x7.5/40 1+5/6+7-9+10 2 ta70℃/B       ●
AS3005-E-0060-090-D 230 2x15.6 2x9/33 1+5/6+7-9+10 2 ta70℃/B       ●
AS3005-E-0060-120-D 230 2x19.9 2x12/25 1+5/6+7-9+10 2 ta70℃/B       ●
AS3005-E-0060-150-D 230 2x23.3 2x15/20 1+5/6+7-9+10 2 ta70℃/B       ●
AS3005-E-0060-180-D 230 2x27.9 2x18/17 1+5/6+7-9+10 2 ta70℃/B       ●
AS3005-E-0060-240-D 230 2x37.2 2x24/13 1+5/6+7-9+10 2 ta70℃/B       ●
AS3005-U-0060-060-S 115 9.7  6/100 1+5/7+9 1 ta70℃/B   ●   ●
AS3005-U-0060-090-S 115 14.5  9/67 1+5/7+9 1 ta70℃/B   ●   ●
AS3005-U-0060-120-S 115 20.5  12/50 1+5/7+9 1 ta70℃/B   ● ● ●
AS3005-U-0060-150-S 115 24.6  15/40 1+5/7+9 1 ta70℃/B   ●   ●
AS3005-U-0060-180-S 115 28.4  18/33 1+5/7+9 1 ta70℃/B   ●   ●
AS3005-U-0060-240-S 115 37.0  24/25 1+5/7+9 1 ta70℃/B   ●   ●
AS3005-U-0060-060-D 115 2x10.1 2x6/50 1+5/6+7-9+10 2 ta70℃/B       ●
AS3005-U-0060-075-D 115 2x12.3 2x7.5/40 1+5/6+7-9+10 2 ta70℃/B       ●
AS3005-U-0060-090-D 115 2x15.6 2x9/33 1+5/6+7-9+10 2 ta70℃/B       ●
AS3005-U-0060-120-D 115 2x19.9 2x12/25 1+5/6+7-9+10 2 ta70℃/B       ●
AS3005-U-0060-150-D 115 2x23.3 2x15/20 1+5/6+7-9+10 2 ta70℃/B       ●
AS3005-U-0060-180-D 115 2x27.9 2x18/17 1+5/6+7-9+10 2 ta70℃/B       ●
AS3005-U-0060-240-D 115 2x37.2 2x24/13 1+5/6+7-9+10 2 ta70℃/B       ●
AS3005-U2-0060-060-S 2x115 9.7  6/100 1+2-4+5/7+9 3 ta70℃/B       ●
AS3005-U2-0060-090-S 2x115 14.5  9/67 1+2-4+5/7+9 3 ta70℃/B       ●
AS3005-U2-0060-120-S 2x115 20.5  12/50 1+2-4+5/7+9 3 ta70℃/B       ●
AS3005-U2-0060-150-S 2x115 24.6  15/40 1+2-4+5/7+9 3 ta70℃/B       ●
AS3005-U2-0060-180-S 2x115 28.4  18/33 1+2-4+5/7+9 3 ta70℃/B       ●
AS3005-U2-0060-240-S 2x115 37.0  24/25 1+2-4+5/7+9 3 ta70℃/B       ●
AS3005-U2-0060-060-D 2x115 2x10.1 2x6/50 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3005-U2-0060-090-D 2x115 2x15.6 2x9/33 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3005-U2-0060-120-D 2x115 2x19.9 2x12/25 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3005-U2-0060-150-D 2x115 2x23.3 2x15/20 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3005-U2-0060-180-D 2x115 2x27.9 2x18/17 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3005-U2-0060-240-D 2x115 2x37.2 2x24/13 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
   EI30×8 0.8VA　 VDE UL CQC CE
AS3008-E-0080-060-S 230 9.0  6/133 1+5/7+9 1 ta70℃/B       ●
AS3008-E-0080-090-S 230 13.5  9/89 1+5/7+9 1 ta70℃/B       ●
AS3008-E-0080-120-S 230 18.0  12/67 1+5/7+9 1 ta70℃/B       ●
AS3008-E-0080-150-S 230 22.5  15/53 1+5/7+9 1 ta70℃/B       ●
AS3008-E-0080-180-S 230 27.0  18/44 1+5/7+9 1 ta70℃/B       ●
AS3008-E-0080-240-S 230 36.0  24/33 1+5/7+9 1 ta70℃/B       ●
AS3008-E-0080-060-D 230 2x9.0 2x6/67 1+5/6+7-9+10 2 ta70℃/B       ●
AS3008-E-0080-075-D 230 2x11.2 2x7.5/53 1+5/6+7-9+10 2 ta70℃/B       ●
AS3008-E-0080-090-D 230 2x13.5 2x9/44 1+5/6+7-9+10 2 ta70℃/B       ●
AS3008-E-0080-120-D 230 2x18.0 2x12/33 1+5/6+7-9+10 2 ta70℃/B       ●
AS3008-E-0080-150-D 230 2x22.5 2x15/27 1+5/6+7-9+10 2 ta70℃/B       ●
AS3008-E-0080-180-D 230 2x27.0 2x18/22 1+5/6+7-9+10 2 ta70℃/B       ●
AS3008-E-0080-240-D 230 2x36.0 2x24/17 1+5/6+7-9+10 2 ta70℃/B       ●
AS3008-U-0080-060-S 115 9.0  6/133 1+5/7+9 1 ta70℃/B       ●
AS3008-U-0080-090-S 115 13.5  9/89 1+5/7+9 1 ta70℃/B       ●
AS3008-U-0080-120-S 115 18.0  12/67 1+5/7+9 1 ta70℃/B       ●
AS3008-U-0080-150-S 115 22.5  15/53 1+5/7+9 1 ta70℃/B       ●
AS3008-U-0080-180-S 115 27.0  18/44 1+5/7+9 1 ta70℃/B       ●
AS3008-U-0080-240-S 115 36.0  24/33 1+5/7+9 1 ta70℃/B       ●
AS3008-U-0080-060-D 115 2x9.0 2x6/67 1+5/6+7-9+10 2 ta70℃/B       ●
AS3008-U-0080-075-D 115 2x11.2 2x7.5/53 1+5/6+7-9+10 2 ta70℃/B       ●
AS3008-U-0080-090-D 115 2x13.5 2x9/44 1+5/6+7-9+10 2 ta70℃/B       ●
AS3008-U-0080-120-D 115 2x18.0 2x12/33 1+5/6+7-9+10 2 ta70℃/B       ●
AS3008-U-0080-150-D 115 2x22.5 2x15/27 1+5/6+7-9+10 2 ta70℃/B       ●
AS3008-U-0080-180-D 115 2x27.0 2x18/22 1+5/6+7-9+10 2 ta70℃/B       ●
AS3008-U-0080-240-D 115 2x36.0 2x24/17 1+5/6+7-9+10 2 ta70℃/B       ●
AS3008-U2-0080-060-S 2x115 9.0  6/133 1+2-4+5/7+9 3 ta70℃/B       ●
AS3008-U2-0080-090-S 2x115 13.5  9/89 1+2-4+5/7+9 3 ta70℃/B       ●
AS3008-U2-0080-120-S 2x115 18.0  12/67 1+2-4+5/7+9 3 ta70℃/B       ●
AS3008-U2-0080-150-S 2x115 22.5  15/53 1+2-4+5/7+9 3 ta70℃/B       ●
AS3008-U2-0080-180-S 2x115 27.0  18/44 1+2-4+5/7+9 3 ta70℃/B       ●
AS3008-U2-0080-240-S 2x115 36.0  24/33 1+2-4+5/7+9 3 ta70℃/B       ●
AS3008-U2-0080-060-D 2x115 2x9.0 2x6/67 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3008-U2-0080-090-D 2x115 2x13.5 2x9/44 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3008-U2-0080-120-D 2x115 2x18.0 2x12/33 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3008-U2-0080-150-D 2x115 2x22.5 2x15/27 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3008-U2-0080-180-D 2x115 2x27.0 2x18/22 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3008-U2-0080-240-D 2x115 2x36.0 2x24/17 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
   EI30×8 1.0VA　　 VDE UL CQC CE
AS3008-E-0100-060-S 230 9.7 6/167 1+5/7+9 1 ta50℃/B       ●
AS3008-E-0100-090-S 230 14.5 9/111 1+5/7+9 1 ta50℃/B       ●
AS3008-E-0100-120-S 230 20.5 12/83 1+5/7+9 1 ta50℃/B       ●
AS3008-E-0100-150-S 230 24.6 15/67 1+5/7+9 1 ta50℃/B       ●
AS3008-E-0100-180-S 230 28.4 18/56 1+5/7+9 1 ta50℃/B       ●
AS3008-E-0100-240-S 230 37.0  24/42 1+5/7+9 1 ta50℃/B       ●
AS3008-E-0100-060-D 230 2x10.1 2x6/83 1+5/6+7-9+10 2 ta50℃/B       ●
AS3008-E-0100-075-D 230 2x12.3 2x7.5/67 1+5/6+7-9+10 2 ta50℃/B       ●
AS3008-E-0100-090-D 230 2x15.6 2x9/56 1+5/6+7-9+10 2 ta50℃/B       ●
AS3008-E-0100-120-D 230 2x19.9 2x12/42 1+5/6+7-9+10 2 ta50℃/B       ●
AS3008-E-0100-150-D 230 2x23.3 2x15/33 1+5/6+7-9+10 2 ta50℃/B       ●
AS3008-E-0100-180-D 230 2x27.9 2x18/28 1+5/6+7-9+10 2 ta50℃/B       ●
AS3008-E-0100-240-D 230 2x37.2 2x24/21 1+5/6+7-9+10 2 ta50℃/B       ●
AS3008-U-0100-060-S 115 9.7  6/167 1+5/7+9 1 ta50℃/B       ●
AS3008-U-0100-090-S 115 14.5  9/111 1+5/7+9 1 ta50℃/B       ●
AS3008-U-0100-120-S 115 20.5  12/83 1+5/7+9 1 ta50℃/B       ●
AS3008-U-0100-150-S 115 24.6  15/67 1+5/7+9 1 ta50℃/B       ●
AS3008-U-0100-180-S 115 28.4  18/56 1+5/7+9 1 ta50℃/B       ●
AS3008-U-0100-240-S 115 37.0  24/42 1+5/7+9 1 ta50℃/B       ●
AS3008-U-0100-060-D 115 2x10.1 2x6/83 1+5/6+7-9+10 2 ta50℃/B       ●
AS3008-U-0100-075-D 115 2x12.3 2x7.5/67 1+5/6+7-9+10 2 ta50℃/B       ●
AS3008-U-0100-090-D 115 2x15.6 2x9/56 1+5/6+7-9+10 2 ta50℃/B       ●
AS3008-U-0100-120-D 115 2x19.9 2x12/42 1+5/6+7-9+10 2 ta50℃/B       ●
AS3008-U-0100-150-D 115 2x23.3 2x15/33 1+5/6+7-9+10 2 ta50℃/B       ●
AS3008-U-0100-180-D 115 2x27.9 2x18/28 1+5/6+7-9+10 2 ta50℃/B       ●
AS3008-U-0100-240-D 115 2x37.2 2x24/21 1+5/6+7-9+10 2 ta50℃/B       ●
AS3008-U2-0100-060-S 2x115 9.7  6/167 1+2-4+5/7+9 3 ta50℃/B       ●
AS3008-U2-0100-090-S 2x115 14.5  9/111 1+2-4+5/7+9 3 ta50℃/B       ●
AS3008-U2-0100-120-S 2x115 20.5  12/83 1+2-4+5/7+9 3 ta50℃/B       ●
AS3008-U2-0100-150-S 2x115 24.6  15/67 1+2-4+5/7+9 3 ta50℃/B       ●
AS3008-U2-0100-180-S 2x115 28.4  18/56 1+2-4+5/7+9 3 ta50℃/B       ●
AS3008-U2-0100-240-S 2x115 37.0  24/42 1+2-4+5/7+9 3 ta50℃/B       ●
AS3008-U2-0100-060-D 2x115 2x10.1 2x6/83 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
AS3008-U2-0100-090-D 2x115 2x15.6 2x9/56 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
AS3008-U2-0100-120-D 2x115 2x19.9 2x12/42 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
AS3008-U2-0100-150-D 2x115 2x23.3 2x15/33 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
AS3008-U2-0100-180-D 2x115 2x27.9 2x18/28 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
AS3008-U2-0100-240-D 2x115 2x37.2 2x24/21 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
  EI30×10.5 1.0VA　　 VDE UL CQC CE
AS3010-E-0100-060-S 230 8.2 6/167 1+5/7+9 1 ta70℃/B ● ●   ●
AS3010-E-0100-090-S 230 12.3 9/111 1+5/7+9 1 ta70℃/B ● ●   ●
AS3010-E-0100-100-S 230 13.5 10/100 1+5/7+9 1 ta70℃/B   ● ● ●
AS3010-E-0100-120-S 230 16.4 12/83 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3010-E-0100-135-S 230 18.5 13.5/74 1+5/7+9 1 ta70℃/B   ●   ●
AS3010-E-0100-150-S 230 20.5 15/67 1+5/7+9 1 ta70℃/B ● ●   ●
AS3010-E-0100-180-S 230 24.6 18/56 1+5/7+9 1 ta70℃/B ● ●   ●
AS3010-E-0100-240-S 230 32.8 24/42 1+5/7+9 1 ta70℃/B ● ●   ●
AS3010-E-0100-060-D 230 2x8.2 2x6/83 1+5/6+7-9+10 2 ta70℃/B ●     ●
AS3010-E-0100-075-D 230 2x10.3 2x7.5/67 1+5/6+7-9+10 2 ta70℃/B ●     ●
AS3010-E-0100-090-D 230 2x12.3 2x9/56 1+5/6+7-9+10 2 ta70℃/B ●     ●
AS3010-E-0100-120-D 230 2x16.4 2x12/42 1+5/6+7-9+10 2 ta70℃/B ●     ●
AS3010-E-0100-150-D 230 2x20.5 2x15/33 1+5/6+7-9+10 2 ta70℃/B ●     ●
AS3010-E-0100-180-D 230 2x24.6 2x18/28 1+5/6+7-9+10 2 ta70℃/B ●     ●
AS3010-E-0100-240-D 230 2x32.8 2x24/21 1+5/6+7-9+10 2 ta70℃/B       ●
AS3010-U-0100-060-S 115 8.2 6/167 1+5/7+9 1 ta70℃/B   ●   ●
AS3010-U-0100-090-S 115 12.3 9/111 1+5/7+9 1 ta70℃/B   ●   ●
AS3010-U-0100-120-S 115 16.4 12/83 1+5/7+9 1 ta70℃/B   ● ● ●
AS3010-U-0100-135-S 115 18.5 13.5/74 1+5/7+9 1 ta70℃/B   ●
AS3010-U-0100-150-S 115 20.5 15/67 1+5/7+9 1 ta70℃/B   ●   ●
AS3010-U-0100-180-S 115 24.6 18/56 1+5/7+9 1 ta70℃/B   ●   ●
AS3010-U-0100-240-S 115 32.8 24/42 1+5/7+9 1 ta70℃/B   ●   ●
AS3010-U-0100-060-D 115 2x8.2 2x6/83 1+5/6+7-9+10 2 ta70℃/B       ●
AS3010-U-0100-075-D 115 2x10.3 2x7.5/67 1+5/6+7-9+10 2 ta70℃/B       ●
AS3010-U-0100-090-D 115 2x12.3 2x9/56 1+5/6+7-9+10 2 ta70℃/B       ●
AS3010-U-0100-120-D 115 2x16.4 2x12/42 1+5/6+7-9+10 2 ta70℃/B       ●
AS3010-U-0100-150-D 115 2x20.5 2x15/33 1+5/6+7-9+10 2 ta70℃/B       ●
AS3010-U-0100-180-D 115 2x24.6 2x18/28 1+5/6+7-9+10 2 ta70℃/B       ●
AS3010-U-0100-240-D 115 2x32.8 2x24/21 1+5/6+7-9+10 2 ta70℃/B       ●
AS3010-U2-0100-060-S 2x115 8.2 6/167 1+2-4+5/7+9 3 ta70℃/B       ●
AS3010-U2-0100-090-S 2x115 12.3 9/111 1+2-4+5/7+9 3 ta70℃/B       ●
AS3010-U2-0100-120-S 2x115 16.4 12/83 1+2-4+5/7+9 3 ta70℃/B       ●
AS3010-U2-0100-150-S 2x115 20.5 15/67 1+2-4+5/7+9 3 ta70℃/B       ●
AS3010-U2-0100-180-S 2x115 24.6 18/56 1+2-4+5/7+9 3 ta70℃/B       ●
AS3010-U2-0100-240-S 2x115 32.8 24/42 1+2-4+5/7+9 3 ta70℃/B       ●
AS3010-U2-0100-060-D 2x115 2x8.2 2x6/83 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3010-U2-0100-090-D 2x115 2x12.3 2x9/56 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3010-U2-0100-120-D 2x115 2x16.4 2x12/42 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3010-U2-0100-150-D 2x115 2x20.5 2x15/33 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3010-U2-0100-180-D 2x115 2x24.6 2x18/28 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3010-U2-0100-240-D 2x115 2x32.8 2x24/21 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
  EI30×10.5 1.5VA　　 VDE UL CQC CE
AS3010-E-0150-060-S 230 9.5  6/250 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3010-E-0150-090-S 230 14.5  9/167 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3010-E-0150-120-S 230 19.0  12/125 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3010-E-0150-135-S 230 21.5  13.5/111 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3010-E-0150-150-S 230 24.0  15/100 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3010-E-0150-180-S 230 28.5  18/83 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3010-E-0150-240-S 230 38.0  24/63 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3010-E-0150-060-D 230 2x9.5 2x6/125 1+5/6+7-9+10 2 ta70℃/B ●   ● ●
AS3010-E-0150-075-D 230 2x11.8 2x7.5/100 1+5/6+7-9+10 2 ta70℃/B ●   ● ●
AS3010-E-0150-090-D 230 2x14.5 2x9/83 1+5/6+7-9+10 2 ta70℃/B ●   ● ●
AS3010-E-0150-120-D 230 2x19.0 2x12/63 1+5/6+7-9+10 2 ta70℃/B ●   ● ●
AS3010-E-0150-150-D 230 2x24.0 2x15/50 1+5/6+7-9+10 2 ta70℃/B ●   ● ●
AS3010-E-0150-180-D 230 2x28.5 2x18/42 1+5/6+7-9+10 2 ta70℃/B       ●
AS3010-E-0150-240-D 230 2x38.0 2x24/31 1+5/6+7-9+10 2 ta70℃/B       ●
AS3010-U-0150-060-S 115 9.5  6/250 1+5/7+9 1 ta70℃/B   ●   ●
AS3010-U-0150-090-S 115 14.5  9/167 1+5/7+9 1 ta70℃/B   ●   ●
AS3010-U-0150-100-S 115 16.0  10/150 1+5/7+9 1 ta70℃/B   ● ● ●
AS3010-U-0150-120-S 115 19.0  12/125 1+5/7+9 1 ta70℃/B   ●   ●
AS3010-U-0150-135-S 115 21.5  13.5/111 1+5/7+9 1 ta70℃/B   ●   ●
AS3010-U-0150-150-S 115 24.0  15/100 1+5/7+9 1 ta70℃/B   ●   ●
AS3010-U-0150-180-S 115 28.5  18/83 1+5/7+9 1 ta70℃/B   ●   ●
AS3010-U-0150-240-S 115 38.0  24/63 1+5/7+9 1 ta70℃/B   ●   ●
AS3010-U-0150-060-D 115 2x9.5 2x6/125 1+5/6+7-9+10 2 ta70℃/B       ●
AS3010-U-0150-075-D 115 2x11.8 2x7.5/100 1+5/6+7-9+10 2 ta70℃/B       ●
AS3010-U-0150-090-D 115 2x14.5 2x9/83 1+5/6+7-9+10 2 ta70℃/B       ●
AS3010-U-0150-120-D 115 2x19.0 2x12/63 1+5/6+7-9+10 2 ta70℃/B       ●
AS3010-U-0150-150-D 115 2x24.0 2x15/50 1+5/6+7-9+10 2 ta70℃/B       ●
AS3010-U-0150-180-D 115 2x28.5 2x18/42 1+5/6+7-9+10 2 ta70℃/B       ●
AS3010-U-0150-240-D 115 2x38.0 2x24/31 1+5/6+7-9+10 2 ta70℃/B       ●
AS3010-U2-0150-060-S 2x115 9.5  6/250 1+2-4+5/7+9 3 ta70℃/B       ●
AS3010-U2-0150-090-S 2x115 14.5  9/167 1+2-4+5/7+9 3 ta70℃/B       ●
AS3010-U2-0150-120-S 2x115 19.0  12/125 1+2-4+5/7+9 3 ta70℃/B       ●
AS3010-U2-0150-150-S 2x115 24.0  15/100 1+2-4+5/7+9 3 ta70℃/B       ●
AS3010-U2-0150-180-S 2x115 28.5  18/83 1+2-4+5/7+9 3 ta70℃/B       ●
AS3010-U2-0150-240-S 2x115 38.0  24/63 1+2-4+5/7+9 3 ta70℃/B       ●
AS3010-U2-0150-060-D 2x115 2x9.5 2x6/125 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3010-U2-0150-090-D 2x115 2x14.5 2x9/83 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3010-U2-0150-120-D 2x115 2x19.0 2x12/63 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3010-U2-0150-150-D 2x115 2x24.0 2x15/50 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3010-U2-0150-180-D 2x115 2x28.5 2x18/42 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3010-U2-0150-240-D 2x115 2x38.0 2x24/31 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
  EI30×12.5 1.5VA　　 VDE UL CQC CE
AS3012-E-0150-060-S 230 8.8  6/250 1+5/7+9 1 ta70℃/B ● ●   ●
AS3012-E-0150-090-S 230 13.0  9/167 1+5/7+9 1 ta70℃/B ● ●   ●
AS3012-E-0150-120-S 230 17.5  12/125 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3012-E-0150-150-S 230 22.0  15/100 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3012-E-0150-180-S 230 25.5  18/83 1+5/7+9 1 ta70℃/B ● ●   ●
AS3012-E-0150-240-S 230 35.5  24/63 1+5/7+9 1 ta70℃/B ● ●   ●
AS3012-E-0150-060-D 230 2x8.8 2x6/125 1+5/6+7-9+10 2 ta70℃/B ●     ●
AS3012-E-0150-075-D 230 2x11.0 2x7.5/100 1+5/6+7-9+10 2 ta70℃/B ●     ●
AS3012-E-0150-090-D 230 2x13.0 2x9/83 1+5/6+7-9+10 2 ta70℃/B ●     ●
AS3012-E-0150-120-D 230 2x17.5 2x12/63 1+5/6+7-9+10 2 ta70℃/B ●     ●
AS3012-E-0150-150-D 230 2x22.0 2x15/50 1+5/6+7-9+10 2 ta70℃/B ●     ●
AS3012-E-0150-180-D 230 2x25.5 2x18/42 1+5/6+7-9+10 2 ta70℃/B       ●
AS3012-E-0150-240-D 230 2x35.5 2x24/31 1+5/6+7-9+10 2 ta70℃/B       ●
AS3012-U-0150-060-S 115 8.8  6/250 1+5/7+9 1 ta70℃/B   ●   ●
AS3012-U-0150-090-S 115 13.0  9/167 1+5/7+9 1 ta70℃/B   ●   ●
AS3012-U-0150-120-S 115 17.5  12/125 1+5/7+9 1 ta70℃/B   ● ● ●
AS3012-U-0150-150-S 115 22.0  15/100 1+5/7+9 1 ta70℃/B   ●   ●
AS3012-U-0150-180-S 115 25.5  18/83 1+5/7+9 1 ta70℃/B   ●   ●
AS3012-U-0150-240-S 115 35.5  24/63 1+5/7+9 1 ta70℃/B   ●   ●
AS3012-U-0150-060-D 115 2x8.8 2x6/125 1+5/6+7-9+10 2 ta70℃/B       ●
AS3012-U-0150-075-D 115 2x11.0 2x7.5/100 1+5/6+7-9+10 2 ta70℃/B       ●
AS3012-U-0150-090-D 115 2x13.0 2x9/83 1+5/6+7-9+10 2 ta70℃/B       ●
AS3012-U-0150-120-D 115 2x17.5 2x12/63 1+5/6+7-9+10 2 ta70℃/B       ●
AS3012-U-0150-150-D 115 2x22.0 2x15/50 1+5/6+7-9+10 2 ta70℃/B       ●
AS3012-U-0150-180-D 115 2x25.5 2x18/42 1+5/6+7-9+10 2 ta70℃/B       ●
AS3012-U-0150-240-D 115 2x35.5 2x24/31 1+5/6+7-9+10 2 ta70℃/B       ●
AS3012-U2-0150-060-S 2x115 8.8  6/250 1+2-4+5/7+9 3 ta70℃/B       ●
AS3012-U2-0150-090-S 2x115 13.0  9/167 1+2-4+5/7+9 3 ta70℃/B       ●
AS3012-U2-0150-120-S 2x115 17.5  12/125 1+2-4+5/7+9 3 ta70℃/B       ●
AS3012-U2-0150-150-S 2x115 22.0  15/100 1+2-4+5/7+9 3 ta70℃/B       ●
AS3012-U2-0150-180-S 2x115 25.5  18/83 1+2-4+5/7+9 3 ta70℃/B       ●
AS3012-U2-0150-240-S 2x115 35.5  24/63 1+2-4+5/7+9 3 ta70℃/B       ●
AS3012-U2-0150-060-D 2x115 2x8.8 2x6/125 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3012-U2-0150-090-D 2x115 2x13.0 2x9/83 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3012-U2-0150-120-D 2x115 2x17.5 2x12/63 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3012-U2-0150-150-D 2x115 2x22.0 2x15/50 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3012-U2-0150-180-D 2x115 2x25.5 2x18/42 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3012-U2-0150-240-D 2x115 2x35.5 2x24/31 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
  EI30×12.5  1.8VA　　 VDE UL CQC CE
AS3012-E-0180-060-S 230 9.5  6/300 1+5/7+9 1 ta50℃/B       ●
AS3012-E-0180-090-S 230 14.5  9/200 1+5/7+9 1 ta50℃/B     ● ●
AS3012-E-0180-120-S 230 19.0  12/150 1+5/7+9 1 ta50℃/B     ● ●
AS3012-E-0180-150-S 230 24.0  15/120 1+5/7+9 1 ta50℃/B       ●
AS3012-E-0180-180-S 230 28.5  18/100 1+5/7+9 1 ta50℃/B       ●
AS3012-E-0180-240-S 230 38.0  24/75 1+5/7+9 1 ta50℃/B       ●
AS3012-E-0180-060-D 230 2x9.5 2x6/150 1+5/6+7-9+10 2 ta50℃/B       ●
AS3012-E-0180-075-D 230 2x11.8 2x7.5/120 1+5/6+7-9+10 2 ta50℃/B       ●
AS3012-E-0180-090-D 230 2x14.5 2x9/100 1+5/6+7-9+10 2 ta50℃/B       ●
AS3012-E-0180-120-D 230 2x19.0 2x12/75 1+5/6+7-9+10 2 ta50℃/B       ●
AS3012-E-0180-150-D 230 2x24.0 2x15/60 1+5/6+7-9+10 2 ta50℃/B       ●
AS3012-E-0180-180-D 230 2x28.5 2x18/50 1+5/6+7-9+10 2 ta50℃/B       ●
AS3012-E-0180-240-D 230 2x38.0 2x24/38 1+5/6+7-9+10 2 ta50℃/B       ●
AS3012-U-0180-060-S 115 9.5  6/300 1+5/7+9 1 ta50℃/B       ●
AS3012-U-0180-090-S 115 14.5  9/200 1+5/7+9 1 ta50℃/B       ●
AS3012-U-0180-120-S 115 19.0  12/150 1+5/7+9 1 ta50℃/B     ● ●
AS3012-U-0180-150-S 115 24.0  15/120 1+5/7+9 1 ta50℃/B       ●
AS3012-U-0180-180-S 115 28.5  18/100 1+5/7+9 1 ta50℃/B       ●
AS3012-U-0180-240-S 115 38.0  24/75 1+5/7+9 1 ta50℃/B       ●
AS3012-U-0180-060-D 115 2x9.5 2x6/150 1+5/6+7-9+10 2 ta50℃/B       ●
AS3012-U-0180-075-D 115 2x11.8 2x7.5/120 1+5/6+7-9+10 2 ta50℃/B       ●
AS3012-U-0180-090-D 115 2x14.5 2x9/100 1+5/6+7-9+10 2 ta50℃/B       ●
AS3012-U-0180-120-D 115 2x19.0 2x12/75 1+5/6+7-9+10 2 ta50℃/B       ●
AS3012-U-0180-150-D 115 2x24.0 2x15/60 1+5/6+7-9+10 2 ta50℃/B       ●
AS3012-U-0180-180-D 115 2x28.5 2x18/50 1+5/6+7-9+10 2 ta50℃/B       ●
AS3012-U-0180-240-D 115 2x38.0 2x24/38 1+5/6+7-9+10 2 ta50℃/B       ●
AS3012-U2-0180-060-S 2x115 9.5  6/300 1+2-4+5/7+9 3 ta50℃/B       ●
AS3012-U2-0180-090-S 2x115 14.5  9/200 1+2-4+5/7+9 3 ta50℃/B       ●
AS3012-U2-0180-120-S 2x115 19.0  12/150 1+2-4+5/7+9 3 ta50℃/B       ●
AS3012-U2-0180-150-S 2x115 24.0  15/120 1+2-4+5/7+9 3 ta50℃/B       ●
AS3012-U2-0180-180-S 2x115 28.5  18/100 1+2-4+5/7+9 3 ta50℃/B       ●
AS3012-U2-0180-240-S 2x115 38.0  24/75 1+2-4+5/7+9 3 ta50℃/B       ●
AS3012-U2-0180-060-D 2x115 2x9.5 2x6/150 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
AS3012-U2-0180-090-D 2x115 2x14.5 2x9/100 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
AS3012-U2-0180-120-D 2x115 2x19.0 2x12/75 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
AS3012-U2-0180-150-D 2x115 2x24.0 2x15/60 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
AS3012-U2-0180-180-D 2x115 2x28.5 2x18/50 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
AS3012-U2-0180-240-D 2x115 2x38.0 2x24/38 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
  EI30×12.5 1.8VA　　 VDE UL CQC CE
AS3012-E-0180-060-S 230 9.5  6/300 1+5/7+9 1 ta70℃/B   ●   ●
AS3012-E-0180-090-S 230 14.5  9/200 1+5/7+9 1 ta70℃/B   ●   ●
AS3012-E-0180-120-S 230 19.0  12/150 1+5/7+9 1 ta70℃/B   ●   ●
AS3012-E-0180-150-S 230 24.0  15/120 1+5/7+9 1 ta70℃/B   ●   ●
AS3012-E-0180-180-S 230 28.5  18/100 1+5/7+9 1 ta70℃/B   ●   ●
AS3012-E-0180-240-S 230 38.0  24/75 1+5/7+9 1 ta70℃/B   ●   ●
AS3012-E-0180-060-D 230 2x9.5 2x6/150 1+5/6+7-9+10 2 ta70℃/B       ●
AS3012-E-0180-075-D 230 2x11.8 2x7.5/120 1+5/6+7-9+10 2 ta70℃/B       ●
AS3012-E-0180-090-D 230 2x14.5 2x9/100 1+5/6+7-9+10 2 ta70℃/B       ●
AS3012-E-0180-120-D 230 2x19.0 2x12/75 1+5/6+7-9+10 2 ta70℃/B       ●
AS3012-E-0180-150-D 230 2x24.0 2x15/60 1+5/6+7-9+10 2 ta70℃/B       ●
AS3012-E-0180-180-D 230 2x28.5 2x18/50 1+5/6+7-9+10 2 ta70℃/B       ●
AS3012-E-0180-240-D 230 2x38.0 2x24/38 1+5/6+7-9+10 2 ta70℃/B       ●
AS3012-U-0180-060-S 115 9.5  6/300 1+5/7+9 1 ta70℃/B   ●   ●
AS3012-U-0180-090-S 115 14.5  9/200 1+5/7+9 1 ta70℃/B   ●   ●
AS3012-U-0180-120-S 115 19.0  12/150 1+5/7+9 1 ta70℃/B   ●   ●
AS3012-U-0180-150-S 115 24.0  15/120 1+5/7+9 1 ta70℃/B   ●   ●
AS3012-U-0180-180-S 115 28.5  18/100 1+5/7+9 1 ta70℃/B   ●   ●
AS3012-U-0180-240-S 115 38.0  24/75 1+5/7+9 1 ta70℃/B   ●   ●
AS3012-U-0180-060-D 115 2x9.5 2x6/150 1+5/6+7-9+10 2 ta70℃/B       ●
AS3012-U-0180-075-D 115 2x11.8 2x7.5/120 1+5/6+7-9+10 2 ta70℃/B       ●
AS3012-U-0180-090-D 115 2x14.5 2x9/100 1+5/6+7-9+10 2 ta70℃/B       ●
AS3012-U-0180-120-D 115 2x19.0 2x12/75 1+5/6+7-9+10 2 ta70℃/B       ●
AS3012-U-0180-150-D 115 2x24.0 2x15/60 1+5/6+7-9+10 2 ta70℃/B       ●
AS3012-U-0180-180-D 115 2x28.5 2x18/50 1+5/6+7-9+10 2 ta70℃/B       ●
AS3012-U-0180-240-D 115 2x38.0 2x24/38 1+5/6+7-9+10 2 ta70℃/B       ●
AS3012-U2-0180-060-S 2x115 9.5  6/300 1+2-4+5/7+9 3 ta70℃/B       ●
AS3012-U2-0180-090-S 2x115 14.5  9/200 1+2-4+5/7+9 3 ta70℃/B       ●
AS3012-U2-0180-120-S 2x115 19.0  12/150 1+2-4+5/7+9 3 ta70℃/B       ●
AS3012-U2-0180-150-S 2x115 24.0  15/120 1+2-4+5/7+9 3 ta70℃/B       ●
AS3012-U2-0180-180-S 2x115 28.5  18/100 1+2-4+5/7+9 3 ta70℃/B       ●
AS3012-U2-0180-240-S 2x115 38.0  24/75 1+2-4+5/7+9 3 ta70℃/B       ●
AS3012-U2-0180-060-D 2x115 2x9.5 2x6/150 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3012-U2-0180-090-D 2x115 2x14.5 2x9/100 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3012-U2-0180-120-D 2x115 2x19.0 2x12/75 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3012-U2-0180-150-D 2x115 2x24.0 2x15/60 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3012-U2-0180-180-D 2x115 2x28.5 2x18/50 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3012-U2-0180-240-D 2x115 2x38.0 2x24/38 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
  EI30×15.5  2.0VA　　 VDE UL CQC CE
AS3015-E-0200-060-S 230 10.0  6/333 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3015-E-0200-090-S 230 15.0  9/222 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3015-E-0200-120-S 230 20.0  12/167 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3015-E-0200-150-S 230 25.0  15/133 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3015-E-0200-180-S 230 30.0  18/111 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3015-E-0200-240-S 230 40.0  24/83 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3015-E-0200-060-D 230 2x10.0 2x6/167 1+5/6+7-9+10 2 ta70℃/B ●   ● ●
AS3015-E-0200-075-D 230 2x12.5 2x7.5/133 1+5/6+7-9+10 2 ta70℃/B ●   ● ●
AS3015-E-0200-090-D 230 2x15.0 2x9/111 1+5/6+7-9+10 2 ta70℃/B ●   ● ●
AS3015-E-0200-120-D 230 2x20.0 2x12/83 1+5/6+7-9+10 2 ta70℃/B ●   ● ●
AS3015-E-0200-150-D 230 2x25.0 2x15/67 1+5/6+7-9+10 2 ta70℃/B ●   ● ●
AS3015-E-0200-180-D 230 2x30.0 2x18/56 1+5/6+7-9+10 2 ta70℃/B       ●
AS3015-E-0200-240-D 230 2x40.0 2x24/42 1+5/6+7-9+10 2 ta70℃/B       ●
AS3015-U-0200-060-S 115 10.0  6/333 1+5/7+9 1 ta70℃/B   ●   ●
AS3015-U-0200-090-S 115 15.0  9/222 1+5/7+9 1 ta70℃/B   ●   ●
AS3015-U-0200-100-S 115 16.5  10/200 1+5/7+9 1 ta70℃/B   ● ● ●
AS3015-U-0200-120-S 115 20.0  12/167 1+5/7+9 1 ta70℃/B   ● ● ●
AS3015-U-0200-150-S 115 25.0  15/133 1+5/7+9 1 ta70℃/B   ●   ●
AS3015-U-0200-180-S 115 30.0  18/111 1+5/7+9 1 ta70℃/B   ●   ●
AS3015-U-0200-240-S 115 40.0  24/83 1+5/7+9 1 ta70℃/B   ●   ●
AS3015-U-0200-060-D 115 2x10.0 2x6/167 1+5/6+7-9+10 2 ta70℃/B       ●
AS3015-U-0200-075-D 115 2x12.5 2x7.5/133 1+5/6+7-9+10 2 ta70℃/B       ●
AS3015-U-0200-090-D 115 2x15.0 2x9/111 1+5/6+7-9+10 2 ta70℃/B       ●
AS3015-U-0200-120-D 115 2x20.0 2x12/83 1+5/6+7-9+10 2 ta70℃/B       ●
AS3015-U-0200-150-D 115 2x25.0 2x15/67 1+5/6+7-9+10 2 ta70℃/B       ●
AS3015-U-0200-180-D 115 2x30.0 2x18/56 1+5/6+7-9+10 2 ta70℃/B       ●
AS3015-U-0200-240-D 115 2x40.0 2x24/42 1+5/6+7-9+10 2 ta70℃/B       ●
AS3015-U2-0200-060-S 2x115 10.0  6/333 1+2-4+5/7+9 3 ta70℃/B       ●
AS3015-U2-0200-090-S 2x115 15.0  9/222 1+2-4+5/7+9 3 ta70℃/B       ●
AS3015-U2-0200-120-S 2x115 20.0  12/167 1+2-4+5/7+9 3 ta70℃/B       ●
AS3015-U2-0200-150-S 2x115 25.0  15/133 1+2-4+5/7+9 3 ta70℃/B       ●
AS3015-U2-0200-180-S 2x115 30.0  18/111 1+2-4+5/7+9 3 ta70℃/B       ●
AS3015-U2-0200-240-S 2x115 40.0  24/83 1+2-4+5/7+9 3 ta70℃/B       ●
AS3015-U2-0200-060-D 2x115 2x10.0 2x6/167 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3015-U2-0200-090-D 2x115 2x15.0 2x9/111 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3015-U2-0200-120-D 2x115 2x20.0 2x12/83 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3015-U2-0200-150-D 2x115 2x25.0 2x15/67 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3015-U2-0200-180-D 2x115 2x30.0 2x18/56 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3015-U2-0200-240-D 2x115 2x40.0 2x24/42 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
  EI30×15.5  2.3VA　　 VDE UL CQC CE
AS3015-E-0230-060-S 230 10.5  6/383 1+5/7+9 1 ta50℃/B       ●
AS3015-E-0230-090-S 230 15.5  9/256 1+5/7+9 1 ta50℃/B       ●
AS3015-E-0230-120-S 230 21.0  12/192 1+5/7+9 1 ta50℃/B     ● ●
AS3015-E-0230-150-S 230 25.3  15/153 1+5/7+9 1 ta50℃/B       ●
AS3015-E-0230-180-S 230 31.0  18/128 1+5/7+9 1 ta50℃/B       ●
AS3015-E-0230-240-S 230 42.0  24/96 1+5/7+9 1 ta50℃/B       ●
AS3015-E-0230-060-D 230 2x10.5 2x6/192 1+5/6+7-9+10 2 ta50℃/B       ●
AS3015-E-0230-075-D 230 2x12.5 2x7.5/153 1+5/6+7-9+10 2 ta50℃/B       ●
AS3015-E-0230-090-D 230 2x15.5 2x9/128 1+5/6+7-9+10 2 ta50℃/B       ●
AS3015-E-0230-120-D 230 2x21.0 2x12/96 1+5/6+7-9+10 2 ta50℃/B       ●
AS3015-E-0230-150-D 230 2x25.0 2x15/77 1+5/6+7-9+10 2 ta50℃/B       ●
AS3015-E-0230-180-D 230 2x31.0 2x18/64 1+5/6+7-9+10 2 ta50℃/B       ●
AS3015-E-0230-240-D 230 2x42.0 2x24/48 1+5/6+7-9+10 2 ta50℃/B       ●
AS3015-U-0230-060-S 115 10.5  6/383 1+5/7+9 1 ta50℃/B       ●
AS3015-U-0230-090-S 115 15.5  9/256 1+5/7+9 1 ta50℃/B       ●
AS3015-U-0230-120-S 115 21.0  12/192 1+5/7+9 1 ta50℃/B       ●
AS3015-U-0230-150-S 115 25.3  15/153 1+5/7+9 1 ta50℃/B       ●
AS3015-U-0230-180-S 115 31.0  18/128 1+5/7+9 1 ta50℃/B       ●
AS3015-U-0230-240-S 115 42.0  24/96 1+5/7+9 1 ta50℃/B       ●
AS3015-U-0230-060-D 115 2x10.5 2x6/192 1+5/6+7-9+10 2 ta50℃/B       ●
AS3015-U-0230-075-D 115 2x12.5 2x7.5/153 1+5/6+7-9+10 2 ta50℃/B       ●
AS3015-U-0230-090-D 115 2x15.5 2x9/128 1+5/6+7-9+10 2 ta50℃/B       ●
AS3015-U-0230-120-D 115 2x21.0 2x12/96 1+5/6+7-9+10 2 ta50℃/B       ●
AS3015-U-0230-150-D 115 2x25.0 2x15/77 1+5/6+7-9+10 2 ta50℃/B       ●
AS3015-U-0230-180-D 115 2x31.0 2x18/64 1+5/6+7-9+10 2 ta50℃/B       ●
AS3015-U-0230-240-D 115 2x42.0 2x24/48 1+5/6+7-9+10 2 ta50℃/B       ●
AS3015-U2-0230-060-S 2x115 10.5  6/383 1+2-4+5/7+9 3 ta50℃/B       ●
AS3015-U2-0230-090-S 2x115 15.5  9/256 1+2-4+5/7+9 3 ta50℃/B       ●
AS3015-U2-0230-120-S 2x115 21.0  12/192 1+2-4+5/7+9 3 ta50℃/B       ●
AS3015-U2-0230-150-S 2x115 25.3  15/153 1+2-4+5/7+9 3 ta50℃/B       ●
AS3015-U2-0230-180-S 2x115 31.0  18/128 1+2-4+5/7+9 3 ta50℃/B       ●
AS3015-U2-0230-240-S 2x115 42.0  24/96 1+2-4+5/7+9 3 ta50℃/B       ●
AS3015-U2-0230-060-D 2x115 2x10.5 2x6/192 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
AS3015-U2-0230-090-D 2x115 2x15.5 2x9/128 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
AS3015-U2-0230-120-D 2x115 2x21.0 2x12/96 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
AS3015-U2-0230-150-D 2x115 2x25.0 2x15/77 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
AS3015-U2-0230-180-D 2x115 2x31.0 2x18/64 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
AS3015-U2-0230-240-D 2x115 2x42.0 2x24/48 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
  EI30×18  2.3VA　　 VDE UL CQC CE
AS3018-E-0230-060-S 230 10.5  6/383 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3018-E-0230-090-S 230 15.7  9/256 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3018-E-0230-120-S 230 21.0  12/192 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3018-E-0230-150-S 230 25.5  15/153 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3018-E-0230-180-S 230 31.5  18/128 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3018-E-0230-240-S 230 42.0  24/96 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3018-E-0230-060-D 230 2x10.5 2x6/192 1+5/6+7-9+10 2 ta70℃/B ●   ● ●
AS3018-E-0230-075-D 230 2x13.0 2x7.5/153 1+5/6+7-9+10 2 ta70℃/B ●   ● ●
AS3018-E-0230-090-D 230 2x15.7 2x9/128 1+5/6+7-9+10 2 ta70℃/B ●   ● ●
AS3018-E-0230-120-D 230 2x21.0 2x12/96 1+5/6+7-9+10 2 ta70℃/B ●   ● ●
AS3018-E-0230-150-D 230 2x25.0 2x15/77 1+5/6+7-9+10 2 ta70℃/B ●   ● ●
AS3018-E-0230-180-D 230 2x31.5 2x18/64 1+5/6+7-9+10 2 ta70℃/B       ●
AS3018-E-0230-240-D 230 2x42.0 2x24/48 1+5/6+7-9+10 2 ta70℃/B       ●
AS3018-U-0230-060-S 115 10.5  6/383 1+5/7+9 1 ta70℃/B   ●   ●
AS3018-U-0230-090-S 115 15.7  9/256 1+5/7+9 1 ta70℃/B   ●   ●
AS3018-U-0230-120-S 115 21.0  12/192 1+5/7+9 1 ta70℃/B   ●   ●
AS3018-U-0230-150-S 115 25.5  15/153 1+5/7+9 1 ta70℃/B   ●   ●
AS3018-U-0230-180-S 115 31.5  18/128 1+5/7+9 1 ta70℃/B   ●   ●
AS3018-U-0230-240-S 115 42.0  24/96 1+5/7+9 1 ta70℃/B   ●   ●
AS3018-U-0230-060-D 115 2x10.5 2x6/192 1+5/6+7-9+10 2 ta70℃/B       ●
AS3018-U-0230-075-D 115 2x13.0 2x7.5/153 1+5/6+7-9+10 2 ta70℃/B       ●
AS3018-U-0230-090-D 115 2x15.7 2x9/128 1+5/6+7-9+10 2 ta70℃/B       ●
AS3018-U-0230-120-D 115 2x21.0 2x12/96 1+5/6+7-9+10 2 ta70℃/B       ●
AS3018-U-0230-150-D 115 2x25.0 2x15/77 1+5/6+7-9+10 2 ta70℃/B       ●
AS3018-U-0230-180-D 115 2x31.5 2x18/64 1+5/6+7-9+10 2 ta70℃/B       ●
AS3018-U-0230-240-D 115 2x42.0 2x24/48 1+5/6+7-9+10 2 ta70℃/B       ●
AS3018-U2-0230-060-S 2x115 10.5  6/383 1+2-4+5/7+9 3 ta70℃/B       ●
AS3018-U2-0230-090-S 2x115 15.7  9/256 1+2-4+5/7+9 3 ta70℃/B       ●
AS3018-U2-0230-120-S 2x115 21.0  12/192 1+2-4+5/7+9 3 ta70℃/B       ●
AS3018-U2-0230-150-S 2x115 25.5  15/153 1+2-4+5/7+9 3 ta70℃/B       ●
AS3018-U2-0230-180-S 2x115 31.5  18/128 1+2-4+5/7+9 3 ta70℃/B       ●
AS3018-U2-0230-240-S 2x115 42.0  24/96 1+2-4+5/7+9 3 ta70℃/B       ●
AS3018-U2-0230-060-D 2x115 2x10.5 2x6/192 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3018-U2-0230-090-D 2x115 2x15.7 2x9/128 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3018-U2-0230-120-D 2x115 2x21.0 2x12/96 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3018-U2-0230-150-D 2x115 2x25.0 2x15/77 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3018-U2-0230-180-D 2x115 2x31.5 2x18/64 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3018-U2-0230-240-D 2x115 2x42.0 2x24/48 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
  EI30×18  2.8VA　　 VDE UL CQC CE
AS3018-E-0280-060-S 230 10.8  6/467 1+5/7+9 1 ta50℃/B       ●
AS3018-E-0280-090-S 230 16.0  9/311 1+5/7+9 1 ta50℃/B       ●
AS3018-E-0280-100-S 230 17.5  10/280 1+5/7+9 1 ta50℃/B     ● ●
AS3018-E-0280-120-S 230 21.6  12/233 1+5/7+9 1 ta50℃/B       ●
AS3018-E-0280-150-S 230 26.9  15/187 1+5/7+9 1 ta50℃/B       ●
AS3018-E-0280-180-S 230 31.5  18/156 1+5/7+9 1 ta50℃/B       ●
AS3018-E-0280-240-S 230 42.0  24/117 1+5/7+9 1 ta50℃/B       ●
AS3018-E-0280-060-D 230 2x10.8 2x6/233 1+5/6+7-9+10 2 ta50℃/B       ●
AS3018-E-0280-075-D 230 2x13.5 2x7.5/187 1+5/6+7-9+10 2 ta50℃/B       ●
AS3018-E-0280-090-D 230 2x16.0 2x9/156 1+5/6+7-9+10 2 ta50℃/B       ●
AS3018-E-0280-120-D 230 2x21.6 2x12/117 1+5/6+7-9+10 2 ta50℃/B       ●
AS3018-E-0280-150-D 230 2x25.0 2x15/93 1+5/6+7-9+10 2 ta50℃/B       ●
AS3018-E-0280-180-D 230 2x31.5 2x18/78 1+5/6+7-9+10 2 ta50℃/B       ●
AS3018-E-0280-240-D 230 2x42.0 2x24/58 1+5/6+7-9+10 2 ta50℃/B       ●
AS3018-U-0280-060-S 115 10.8  6/467 1+5/7+9 1 ta50℃/B       ●
AS3018-U-0280-090-S 115 16.0  9/311 1+5/7+9 1 ta50℃/B       ●
AS3018-U-0280-120-S 115 21.6  12/233 1+5/7+9 1 ta50℃/B       ●
AS3018-U-0280-150-S 115 26.9  15/187 1+5/7+9 1 ta50℃/B       ●
AS3018-U-0280-180-S 115 31.5  18/156 1+5/7+9 1 ta50℃/B       ●
AS3018-U-0280-240-S 115 42.0  24/117 1+5/7+9 1 ta50℃/B       ●
AS3018-U-0280-060-D 115 2x10.8 2x6/233 1+5/6+7-9+10 2 ta50℃/B       ●
AS3018-U-0280-075-D 115 2x13.5 2x7.5/187 1+5/6+7-9+10 2 ta50℃/B       ●
AS3018-U-0280-090-D 115 2x16.0 2x9/156 1+5/6+7-9+10 2 ta50℃/B       ●
AS3018-U-0280-120-D 115 2x21.6 2x12/117 1+5/6+7-9+10 2 ta50℃/B       ●
AS3018-U-0280-150-D 115 2x25.0 2x15/93 1+5/6+7-9+10 2 ta50℃/B       ●
AS3018-U-0280-180-D 115 2x31.5 2x18/78 1+5/6+7-9+10 2 ta50℃/B       ●
AS3018-U-0280-240-D 115 2x42.0 2x24/58 1+5/6+7-9+10 2 ta50℃/B       ●
AS3018-U2-0280-060-S 2x115 10.8  6/467 1+2-4+5/7+9 3 ta50℃/B       ●
AS3018-U2-0280-090-S 2x115 16.0  9/311 1+2-4+5/7+9 3 ta50℃/B       ●
AS3018-U2-0280-120-S 2x115 21.6  12/233 1+2-4+5/7+9 3 ta50℃/B       ●
AS3018-U2-0280-150-S 2x115 26.9  15/187 1+2-4+5/7+9 3 ta50℃/B       ●
AS3018-U2-0280-180-S 2x115 31.5  18/156 1+2-4+5/7+9 3 ta50℃/B       ●
AS3018-U2-0280-240-S 2x115 42.0  24/117 1+2-4+5/7+9 3 ta50℃/B       ●
AS3018-U2-0280-060-D 2x115 2x10.8 2x6/233 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
AS3018-U2-0280-090-D 2x115 2x16.0 2x9/156 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
AS3018-U2-0280-120-D 2x115 2x21.6 2x12/117 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
AS3018-U2-0280-150-D 2x115 2x25.0 2x15/93 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
AS3018-U2-0280-180-D 2x115 2x31.5 2x18/78 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
AS3018-U2-0280-240-D 2x115 2x42.0 2x24/58 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
  EI30×23  2.8VA　　 VDE UL CQC CE
AS3023-E-0280-060-S 230 10.5  6/467 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3023-E-0280-090-S 230 15.7  9/311 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3023-E-0280-120-S 230 21.0  12/233 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3023-E-0280-150-S 230 25.5  15/187 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3023-E-0280-180-S 230 31.5  18/156 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3023-E-0280-240-S 230 42.0  24/117 1+5/7+9 1 ta70℃/B ● ● ● ●
AS3023-E-0280-060-D 230 2x10.5 2x6/233 1+5/6+7-9+10 2 ta70℃/B ●   ● ●
AS3023-E-0280-075-D 230 2x13.0 2x7.5/187 1+5/6+7-9+10 2 ta70℃/B ●   ● ●
AS3023-E-0280-090-D 230 2x15.7 2x9/156 1+5/6+7-9+10 2 ta70℃/B ●   ● ●
AS3023-E-0280-120-D 230 2x21.0 2x12/117 1+5/6+7-9+10 2 ta70℃/B ●   ● ●
AS3023-E-0280-150-D 230 2x25.0 2x15/93 1+5/6+7-9+10 2 ta70℃/B ●   ● ●
AS3023-E-0280-180-D 230 2x31.5 2x18/78 1+5/6+7-9+10 2 ta70℃/B       ●
AS3023-E-0280-240-D 230 2x42.0 2x24/58 1+5/6+7-9+10 2 ta70℃/B       ●
AS3023-U-0280-060-S 115 10.5  6/467 1+5/7+9 1 ta70℃/B   ●   ●
AS3023-U-0280-090-S 115 15.7  9/311 1+5/7+9 1 ta70℃/B   ●   ●
AS3023-U-0280-120-S 115 21.0  12/233 1+5/7+9 1 ta70℃/B   ●   ●
AS3023-U-0280-150-S 115 25.5  15/187 1+5/7+9 1 ta70℃/B   ●   ●
AS3023-U-0280-180-S 115 31.5  18/156 1+5/7+9 1 ta70℃/B   ●   ●
AS3023-U-0280-240-S 115 42.0  24/117 1+5/7+9 1 ta70℃/B   ●   ●
AS3023-U-0280-060-D 115 2x10.5 2x6/233 1+5/6+7-9+10 2 ta70℃/B       ●
AS3023-U-0280-075-D 115 2x13.0 2x7.5/187 1+5/6+7-9+10 2 ta70℃/B       ●
AS3023-U-0280-090-D 115 2x15.7 2x9/156 1+5/6+7-9+10 2 ta70℃/B       ●
AS3023-U-0280-120-D 115 2x21.0 2x12/117 1+5/6+7-9+10 2 ta70℃/B       ●
AS3023-U-0280-150-D 115 2x25.0 2x15/93 1+5/6+7-9+10 2 ta70℃/B       ●
AS3023-U-0280-180-D 115 2x31.5 2x18/78 1+5/6+7-9+10 2 ta70℃/B       ●
AS3023-U-0280-240-D 115 2x42.0 2x24/58 1+5/6+7-9+10 2 ta70℃/B       ●
AS3023-U2-0280-060-S 2x115 10.5  6/467 1+2-4+5/7+9 3 ta70℃/B       ●
AS3023-U2-0280-090-S 2x115 15.7  9/311 1+2-4+5/7+9 3 ta70℃/B       ●
AS3023-U2-0280-120-S 2x115 21.0  12/233 1+2-4+5/7+9 3 ta70℃/B       ●
AS3023-U2-0280-150-S 2x115 25.5  15/187 1+2-4+5/7+9 3 ta70℃/B       ●
AS3023-U2-0280-180-S 2x115 31.5  18/156 1+2-4+5/7+9 3 ta70℃/B       ●
AS3023-U2-0280-240-S 2x115 42.0  24/117 1+2-4+5/7+9 3 ta70℃/B       ●
AS3023-U2-0280-060-D 2x115 2x10.5 2x6/233 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3023-U2-0280-090-D 2x115 2x15.7 2x9/156 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3023-U2-0280-120-D 2x115 2x21.0 2x12/117 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3023-U2-0280-150-D 2x115 2x25.0 2x15/93 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3023-U2-0280-180-D 2x115 2x31.5 2x18/78 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
AS3023-U2-0280-240-D 2x115 2x42.0 2x24/58 1+2-4+5/6+7-9+10 4 ta70℃/B       ●
EI30×23  3.0VA　　 VDE UL CQC CE
AS3023-E-0300-060-S 230 10.8  6/500 1+5/7+9 1 ta50℃/B       ●
AS3023-E-0300-090-S 230 16.0  9/333 1+5/7+9 1 ta50℃/B       ●
AS3023-E-0300-120-S 230 21.6  12/250 1+5/7+9 1 ta50℃/B       ●
AS3023-E-0300-150-S 230 26.9  15/200 1+5/7+9 1 ta50℃/B       ●
AS3023-E-0300-180-S 230 31.5  18/167 1+5/7+9 1 ta50℃/B       ●
AS3023-E-0300-240-S 230 42.0  24/125 1+5/7+9 1 ta50℃/B       ●
AS3023-E-0300-060-D 230 2x10.8 2x6/250 1+5/6+7-9+10 2 ta50℃/B       ●
AS3023-E-0300-075-D 230 2x13.5 2x7.5/200 1+5/6+7-9+10 2 ta50℃/B       ●
AS3023-E-0300-090-D 230 2x16.0 2x9/167 1+5/6+7-9+10 2 ta50℃/B       ●
AS3023-E-0300-120-D 230 2x21.6 2x12/125 1+5/6+7-9+10 2 ta50℃/B       ●
AS3023-E-0300-150-D 230 2x25.0 2x15/100 1+5/6+7-9+10 2 ta50℃/B       ●
AS3023-E-0300-180-D 230 2x31.5 2x18/83 1+5/6+7-9+10 2 ta50℃/B       ●
AS3023-E-0300-240-D 230 2x42.0 2x24/63 1+5/6+7-9+10 2 ta50℃/B       ●
AS3023-U-0300-060-S 115 10.8  6/500 1+5/7+9 1 ta50℃/B       ●
AS3023-U-0300-090-S 115 16.0  9/333 1+5/7+9 1 ta50℃/B       ●
AS3023-U-0300-120-S 115 21.6  12/250 1+5/7+9 1 ta50℃/B       ●
AS3023-U-0300-150-S 115 26.9  15/200 1+5/7+9 1 ta50℃/B       ●
AS3023-U-0300-180-S 115 31.5  18/167 1+5/7+9 1 ta50℃/B       ●
AS3023-U-0300-240-S 115 42.0  24/125 1+5/7+9 1 ta50℃/B       ●
AS3023-U-0300-060-D 115 2x10.8 2x6/250 1+5/6+7-9+10 2 ta50℃/B       ●
AS3023-U-0300-075-D 115 2x13.5 2x7.5/200 1+5/6+7-9+10 2 ta50℃/B       ●
AS3023-U-0300-090-D 115 2x16.0 2x9/167 1+5/6+7-9+10 2 ta50℃/B       ●
AS3023-U-0300-120-D 115 2x21.6 2x12/125 1+5/6+7-9+10 2 ta50℃/B       ●
AS3023-U-0300-150-D 115 2x25.0 2x15/100 1+5/6+7-9+10 2 ta50℃/B       ●
AS3023-U-0300-180-D 115 2x31.5 2x18/83 1+5/6+7-9+10 2 ta50℃/B       ●
AS3023-U-0300-240-D 115 2x42.0 2x24/63 1+5/6+7-9+10 2 ta50℃/B       ●
AS3023-U2-0300-060-S 2x115 10.8  6/500 1+2-4+5/7+9 3 ta50℃/B       ●
AS3023-U2-0300-090-S 2x115 16.0  9/333 1+2-4+5/7+9 3 ta50℃/B       ●
AS3023-U2-0300-120-S 2x115 21.6  12/250 1+2-4+5/7+9 3 ta50℃/B       ●
AS3023-U2-0300-150-S 2x115 26.9  15/200 1+2-4+5/7+9 3 ta50℃/B       ●
AS3023-U2-0300-180-S 2x115 31.5  18/167 1+2-4+5/7+9 3 ta50℃/B       ●
AS3023-U2-0300-240-S 2x115 42.0  24/125 1+2-4+5/7+9 3 ta50℃/B       ●
AS3023-U2-0300-060-D 2x115 2x10.8 2x6/250 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
AS3023-U2-0300-090-D 2x115 2x16.0 2x9/167 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
AS3023-U2-0300-120-D 2x115 2x21.6 2x12/125 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
AS3023-U2-0300-150-D 2x115 2x25.0 2x15/100 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
AS3023-U2-0300-180-D 2x115 2x31.5 2x18/83 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
AS3023-U2-0300-240-D 2x115 2x42.0 2x24/63 1+2-4+5/6+7-9+10 4 ta50℃/B       ●
   EI30×5  0.6VA  VDE UL CQC CE
AF3005-E-0060-060-S 230 10.0  6/100 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3005-E-0060-090-S 230 15.0  9/67 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3005-E-0060-120-S 230 20.0  12/50 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3005-E-0060-150-S 230 24.9  15/40 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3005-E-0060-180-S 230 29.9  18/33 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3005-E-0060-240-S 230 40.0  24/25 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3005-E-0060-060-D 230 2x10.0 2x6/50 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3005-E-0060-075-D 230 2x12.5 2x7.5/40 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3005-E-0060-090-D 230 2x15.0 2x9/33 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3005-E-0060-120-D 230 2x20.0 2x12/25 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3005-E-0060-150-D 230 2x24.9 2x15/20 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3005-E-0060-180-D 230 2x29.9 2x18/17 1+5/6+7-9+10 2 ta70℃/F       ●
AF3005-E-0060-240-D 230 2x40.0 2x24/13 1+5/6+7-9+10 2 ta70℃/F       ●
AF3005-U-0060-060-S 115 10.0  6/100 1+5/7+9 1 ta70℃/F   ●   ●
AF3005-U-0060-090-S 115 15.0  9/67 1+5/7+9 1 ta70℃/F   ●   ●
AF3005-U-0060-120-S 115 20.0  12/50 1+5/7+9 1 ta70℃/F   ●   ●
AF3005-U-0060-150-S 115 24.9  15/40 1+5/7+9 1 ta70℃/F   ●   ●
AF3005-U-0060-180-S 115 29.9  18/33 1+5/7+9 1 ta70℃/F   ●   ●
AF3005-U-0060-240-S 115 40.0  24/25 1+5/7+9 1 ta70℃/F   ●   ●
AF3005-U-0060-060-D 115 2x10.0 2x6/50 1+5/6+7-9+10 2 ta70℃/F       ●
AF3005-U-0060-075-D 115 2x12.5 2x7.5/40 1+5/6+7-9+10 2 ta70℃/F       ●
AF3005-U-0060-090-D 115 2x15.0 2x9/33 1+5/6+7-9+10 2 ta70℃/F       ●
AF3005-U-0060-120-D 115 2x20.0 2x12/25 1+5/6+7-9+10 2 ta70℃/F       ●
AF3005-U-0060-150-D 115 2x24.9 2x15/20 1+5/6+7-9+10 2 ta70℃/F       ●
AF3005-U-0060-180-D 115 2x29.9 2x18/17 1+5/6+7-9+10 2 ta70℃/F       ●
AF3005-U-0060-240-D 115 2x40.0 2x24/13 1+5/6+7-9+10 2 ta70℃/F       ●
AF3005-U2-0060-060-S 2x115 10.0  6/100 1+2-4+5/7+9 3 ta70℃/F       ●
AF3005-U2-0060-090-S 2x115 15.0  9/67 1+2-4+5/7+9 3 ta70℃/F       ●
AF3005-U2-0060-120-S 2x115 20.0  12/50 1+2-4+5/7+9 3 ta70℃/F       ●
AF3005-U2-0060-150-S 2x115 24.9  15/40 1+2-4+5/7+9 3 ta70℃/F       ●
AF3005-U2-0060-180-S 2x115 29.9  18/33 1+2-4+5/7+9 3 ta70℃/F       ●
AF3005-U2-0060-240-S 2x115 40.0  24/25 1+2-4+5/7+9 3 ta70℃/F       ●
AF3005-U2-0060-060-D 2x115 2x10.0 2x6/50 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3005-U2-0060-090-D 2x115 2x15.0 2x9/33 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3005-U2-0060-120-D 2x115 2x20.0 2x12/25 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3005-U2-0060-150-D 2x115 2x24.9 2x15/20 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3005-U2-0060-180-D 2x115 2x29.9 2x18/17 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3005-U2-0060-240-D 2x115 2x40.0 2x24/13 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
   EI30×10.5  1.5VA  VDE UL CQC CE
AF3010-E-0150-060-S 230 9.5  6/250 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3010-E-0150-090-S 230 14.5  9/167 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3010-E-0150-120-S 230 19.0  12/125 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3010-E-0150-135-S 230 21.5  13.5/111 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3010-E-0150-150-S 230 24.0  15/100 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3010-E-0150-180-S 230 28.5  18/83 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3010-E-0150-240-S 230 38.0  24/63 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3010-E-0150-060-D 230 2x9.5 2x6/125 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3010-E-0150-075-D 230 2x11.8 2x7.5/100 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3010-E-0150-090-D 230 2x14.5 2x9/83 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3010-E-0150-120-D 230 2x19.0 2x12/63 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3010-E-0150-150-D 230 2x24.0 2x15/50 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3010-E-0150-180-D 230 2x28.5 2x18/42 1+5/6+7-9+10 2 ta70℃/F       ●
AF3010-E-0150-240-D 230 2x38.0 2x24/31 1+5/6+7-9+10 2 ta70℃/F       ●
AF3010-U-0150-060-S 115 9.5  6/250 1+5/7+9 1 ta70℃/F   ●   ●
AF3010-U-0150-090-S 115 14.5  9/167 1+5/7+9 1 ta70℃/F   ●   ●
AF3010-U-0150-120-S 115 19.0  12/125 1+5/7+9 1 ta70℃/F   ●   ●
AF3010-U-0150-135-S 115 21.5  13.5/111 1+5/7+9 1 ta70℃/F   ●   ●
AF3010-U-0150-150-S 115 24.0  15/100 1+5/7+9 1 ta70℃/F   ●   ●
AF3010-U-0150-180-S 115 28.5  18/83 1+5/7+9 1 ta70℃/F   ●   ●
AF3010-U-0150-240-S 115 38.0  24/63 1+5/7+9 1 ta70℃/F   ●   ●
AF3010-U-0150-060-D 115 2x9.5 2x6/125 1+5/6+7-9+10 2 ta70℃/F       ●
AF3010-U-0150-075-D 115 2x11.8 2x7.5/100 1+5/6+7-9+10 2 ta70℃/F       ●
AF3010-U-0150-090-D 115 2x14.5 2x9/83 1+5/6+7-9+10 2 ta70℃/F       ●
AF3010-U-0150-120-D 115 2x19.0 2x12/63 1+5/6+7-9+10 2 ta70℃/F       ●
AF3010-U-0150-150-D 115 2x24.0 2x15/50 1+5/6+7-9+10 2 ta70℃/F       ●
AF3010-U-0150-180-D 115 2x28.5 2x18/42 1+5/6+7-9+10 2 ta70℃/F       ●
AF3010-U-0150-240-D 115 2x38.0 2x24/31 1+5/6+7-9+10 2 ta70℃/F       ●
AF3010-U2-0150-060-S 2x115 9.5  6/250 1+2-4+5/7+9 3 ta70℃/F       ●
AF3010-U2-0150-090-S 2x115 14.5  9/167 1+2-4+5/7+9 3 ta70℃/F       ●
AF3010-U2-0150-120-S 2x115 19.0  12/125 1+2-4+5/7+9 3 ta70℃/F       ●
AF3010-U2-0150-150-S 2x115 24.0  15/100 1+2-4+5/7+9 3 ta70℃/F       ●
AF3010-U2-0150-180-S 2x115 28.5  18/83 1+2-4+5/7+9 3 ta70℃/F       ●
AF3010-U2-0150-240-S 2x115 38.0  24/63 1+2-4+5/7+9 3 ta70℃/F       ●
AF3010-U2-0150-060-D 2x115 2x9.5 2x6/125 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3010-U2-0150-090-D 2x115 2x14.5 2x9/83 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3010-U2-0150-120-D 2x115 2x19.0 2x12/63 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3010-U2-0150-150-D 2x115 2x24.0 2x15/50 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3010-U2-0150-180-D 2x115 2x28.5 2x18/42 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3010-U2-0150-240-D 2x115 2x38.0 2x24/31 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
   EI30×10.5  1.8VA  VDE UL CQC CE
AF3010-E-0180-060-S 230 10.5  6/300 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3010-E-0180-090-S 230 15.5  9/200 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3010-E-0180-120-S 230 20.5  12/150 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3010-E-0180-135-S 230 23.5  13.5/133 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3010-E-0180-150-S 230 26.5  15/120 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3010-E-0180-180-S 230 30.4  18/100 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3010-E-0180-240-S 230 41.5  24/75 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3010-E-0180-060-D 230 2x10.5 2x6/150 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3010-E-0180-075-D 230 2x13.5 2x7.5/120 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3010-E-0180-090-D 230 2x15.5 2x9/100 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3010-E-0180-120-D 230 2x20.5 2x12/75 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3010-E-0180-150-D 230 2x25.0 2x15/60 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3010-E-0180-180-D 230 2x30.4 2x18/50 1+5/6+7-9+10 2 ta70℃/F       ●
AF3010-E-0180-240-D 230 2x41.5 2x24/38 1+5/6+7-9+10 2 ta70℃/F       ●
AF3010-U-0180-060-S 115 10.5  6/300 1+5/7+9 1 ta70℃/F   ●   ●
AF3010-U-0180-090-S 115 15.5  9/200 1+5/7+9 1 ta70℃/F   ●   ●
AF3010-U-0180-120-S 115 20.5  12/150 1+5/7+9 1 ta70℃/F   ●   ●
AF3010-U-0180-135-S 115 23.5  13.5/133 1+5/7+9 1 ta70℃/F   ●   ●
AF3010-U-0180-150-S 115 26.5  15/120 1+5/7+9 1 ta70℃/F   ●   ●
AF3010-U-0180-180-S 115 30.4  18/100 1+5/7+9 1 ta70℃/F   ●   ●
AF3010-U-0180-240-S 115 41.5  24/75 1+5/7+9 1 ta70℃/F   ●   ●
AF3010-U-0180-060-D 115 2x10.5 2x6/150 1+5/6+7-9+10 2 ta70℃/F       ●
AF3010-U-0180-075-D 115 2x13.5 2x7.5/120 1+5/6+7-9+10 2 ta70℃/F       ●
AF3010-U-0180-090-D 115 2x15.5 2x9/100 1+5/6+7-9+10 2 ta70℃/F       ●
AF3010-U-0180-120-D 115 2x20.5 2x12/75 1+5/6+7-9+10 2 ta70℃/F       ●
AF3010-U-0180-150-D 115 2x25.0 2x15/60 1+5/6+7-9+10 2 ta70℃/F       ●
AF3010-U-0180-180-D 115 2x30.4 2x18/50 1+5/6+7-9+10 2 ta70℃/F       ●
AF3010-U-0180-240-D 115 2x41.5 2x24/38 1+5/6+7-9+10 2 ta70℃/F       ●
AF3010-U2-0180-060-S 2x115 10.5  6/300 1+2-4+5/7+9 3 ta70℃/F       ●
AF3010-U2-0180-090-S 2x115 15.5  9/200 1+2-4+5/7+9 3 ta70℃/F       ●
AF3010-U2-0180-120-S 2x115 20.5  12/150 1+2-4+5/7+9 3 ta70℃/F       ●
AF3010-U2-0180-150-S 2x115 26.5  15/120 1+2-4+5/7+9 3 ta70℃/F       ●
AF3010-U2-0180-180-S 2x115 30.4  18/100 1+2-4+5/7+9 3 ta70℃/F       ●
AF3010-U2-0180-240-S 2x115 41.5  24/75 1+2-4+5/7+9 3 ta70℃/F       ●
AF3010-U2-0180-060-D 2x115 2x10.5 2x6/150 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3010-U2-0180-090-D 2x115 2x15.5 2x9/100 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3010-U2-0180-120-D 2x115 2x20.5 2x12/75 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3010-U2-0180-150-D 2x115 2x25.0 2x15/60 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3010-U2-0180-180-D 2x115 2x30.4 2x18/50 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3010-U2-0180-240-D 2x115 2x41.5 2x24/38 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
   EI30×12.5 1.8VA  VDE UL CQC CE
AF3012-E-0180-060-S 230 9.5  6/300 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3012-E-0180-090-S 230 14.5  9/200 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3012-E-0180-120-S 230 19.0  12/150 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3012-E-0180-150-S 230 24.0  15/120 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3012-E-0180-180-S 230 28.5  18/100 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3012-E-0180-240-S 230 38.0  24/75 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3012-E-0180-060-D 230 2x9.5 2x6/150 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3012-E-0180-075-D 230 2x11.8 2x7.5/120 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3012-E-0180-090-D 230 2x14.5 2x9/100 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3012-E-0180-120-D 230 2x19.0 2x12/75 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3012-E-0180-150-D 230 2x24.0 2x15/60 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3012-E-0180-180-D 230 2x28.5 2x18/50 1+5/6+7-9+10 2 ta70℃/F       ●
AF3012-E-0180-240-D 230 2x38.0 2x24/38 1+5/6+7-9+10 2 ta70℃/F       ●
AF3012-U-0180-060-S 115 9.5  6/300 1+5/7+9 1 ta70℃/F   ●   ●
AF3012-U-0180-090-S 115 14.5  9/200 1+5/7+9 1 ta70℃/F   ●   ●
AF3012-U-0180-120-S 115 19.0  12/150 1+5/7+9 1 ta70℃/F   ●   ●
AF3012-U-0180-150-S 115 24.0  15/120 1+5/7+9 1 ta70℃/F   ●   ●
AF3012-U-0180-180-S 115 28.5  18/100 1+5/7+9 1 ta70℃/F   ●   ●
AF3012-U-0180-240-S 115 38.0  24/75 1+5/7+9 1 ta70℃/F   ●   ●
AF3012-U-0180-060-D 115 2x9.5 2x6/150 1+5/6+7-9+10 2 ta70℃/F       ●
AF3012-U-0180-075-D 115 2x11.8 2x7.5/120 1+5/6+7-9+10 2 ta70℃/F       ●
AF3012-U-0180-090-D 115 2x14.5 2x9/100 1+5/6+7-9+10 2 ta70℃/F       ●
AF3012-U-0180-120-D 115 2x19.0 2x12/75 1+5/6+7-9+10 2 ta70℃/F       ●
AF3012-U-0180-150-D 115 2x24.0 2x15/60 1+5/6+7-9+10 2 ta70℃/F       ●
AF3012-U-0180-180-D 115 2x28.5 2x18/50 1+5/6+7-9+10 2 ta70℃/F       ●
AF3012-U-0180-240-D 115 2x38.0 2x24/38 1+5/6+7-9+10 2 ta70℃/F       ●
AF3012-U2-0180-060-S 2x115 9.5  6/300 1+2-4+5/7+9 3 ta70℃/F       ●
AF3012-U2-0180-090-S 2x115 14.5  9/200 1+2-4+5/7+9 3 ta70℃/F       ●
AF3012-U2-0180-120-S 2x115 19.0  12/150 1+2-4+5/7+9 3 ta70℃/F       ●
AF3012-U2-0180-150-S 2x115 24.0  15/120 1+2-4+5/7+9 3 ta70℃/F       ●
AF3012-U2-0180-180-S 2x115 28.5  18/100 1+2-4+5/7+9 3 ta70℃/F       ●
AF3012-U2-0180-240-S 2x115 38.0  24/75 1+2-4+5/7+9 3 ta70℃/F       ●
AF3012-U2-0180-060-D 2x115 2x9.5 2x6/150 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3012-U2-0180-090-D 2x115 2x14.5 2x9/100 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3012-U2-0180-120-D 2x115 2x19.0 2x12/75 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3012-U2-0180-150-D 2x115 2x24.0 2x15/60 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3012-U2-0180-180-D 2x115 2x28.5 2x18/50 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3012-U2-0180-240-D 2x115 2x38.0 2x24/38 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
  EI30×12.5 1.9VA  VDE UL CQC CE
AF3012-E-0190-060-S 230 9.5  6/317 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3012-E-0190-090-S 230 14.5  9/211 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3012-E-0190-120-S 230 19.0  12/158 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3012-E-0190-150-S 230 24.0  15/127 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3012-E-0190-180-S 230 28.5  18/106 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3012-E-0190-240-S 230 38.0  24/79 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3012-E-0190-060-D 230 2x9.5 2x6/158 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3012-E-0190-075-D 230 2x11.8 2x7.5/127 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3012-E-0190-090-D 230 2x14.5 2x9/106 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3012-E-0190-120-D 230 2x19.0 2x12/79 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3012-E-0190-150-D 230 2x24.0 2x15/63 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3012-E-0190-180-D 230 2x28.5 2x18/53 1+5/6+7-9+10 2 ta70℃/F       ●
AF3012-E-0190-240-D 230 2x38.0 2x24/40 1+5/6+7-9+10 2 ta70℃/F       ●
AF3012-U-0190-060-S 115 9.5  6/317 1+5/7+9 1 ta70℃/F   ●   ●
AF3012-U-0190-090-S 115 14.5  9/211 1+5/7+9 1 ta70℃/F   ●   ●
AF3012-U-0190-120-S 115 19.0  12/158 1+5/7+9 1 ta70℃/F   ●   ●
AF3012-U-0190-150-S 115 24.0  15/127 1+5/7+9 1 ta70℃/F   ●   ●
AF3012-U-0190-180-S 115 28.5  18/106 1+5/7+9 1 ta70℃/F   ●   ●
AF3012-U-0190-240-S 115 38.0  24/79 1+5/7+9 1 ta70℃/F   ●   ●
AF3012-U-0190-060-D 115 2x9.5 2x6/158 1+5/6+7-9+10 2 ta70℃/F       ●
AF3012-U-0190-075-D 115 2x11.8 2x7.5/127 1+5/6+7-9+10 2 ta70℃/F       ●
AF3012-U-0190-090-D 115 2x14.5 2x9/106 1+5/6+7-9+10 2 ta70℃/F       ●
AF3012-U-0190-120-D 115 2x19.0 2x12/79 1+5/6+7-9+10 2 ta70℃/F       ●
AF3012-U-0190-150-D 115 2x24.0 2x15/63 1+5/6+7-9+10 2 ta70℃/F       ●
AF3012-U-0190-180-D 115 2x28.5 2x18/53 1+5/6+7-9+10 2 ta70℃/F       ●
AF3012-U-0190-240-D 115 2x38.0 2x24/40 1+5/6+7-9+10 2 ta70℃/F       ●
AF3012-U2-0190-060-S 2x115 9.5  6/317 1+2-4+5/7+9 3 ta70℃/F       ●
AF3012-U2-0190-090-S 2x115 14.5  9/211 1+2-4+5/7+9 3 ta70℃/F       ●
AF3012-U2-0190-120-S 2x115 19.0  12/158 1+2-4+5/7+9 3 ta70℃/F       ●
AF3012-U2-0190-150-S 2x115 24.0  15/127 1+2-4+5/7+9 3 ta70℃/F       ●
AF3012-U2-0190-180-S 2x115 28.5  18/106 1+2-4+5/7+9 3 ta70℃/F       ●
AF3012-U2-0190-240-S 2x115 38.0  24/79 1+2-4+5/7+9 3 ta70℃/F       ●
AF3012-U2-0190-060-D 2x115 2x9.5 2x6/158 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3012-U2-0190-090-D 2x115 2x14.5 2x9/106 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3012-U2-0190-120-D 2x115 2x19.0 2x12/79 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3012-U2-0190-150-D 2x115 2x24.0 2x15/63 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3012-U2-0190-180-D 2x115 2x28.5 2x18/53 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3012-U2-0190-240-D 2x115 2x38.0 2x24/40 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
   EI30×15.5 2.1VA  VDE UL CQC CE
AF3015-E-0210-060-S 230 10.5  6/350 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3015-E-0210-090-S 230 16.0  9/233 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3015-E-0210-120-S 230 21.5  12/175 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3015-E-0210-150-S 230 26.5  15/140 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3015-E-0210-180-S 230 30.0  18/117 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3015-E-0210-240-S 230 37.3  24/88 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3015-E-0210-060-D 230 2x11.2 2x6/175 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3015-E-0210-075-D 230 2x14.2 2x7.5/140 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3015-E-0210-090-D 230 2x16.2 2x9/117 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3015-E-0210-120-D 230 2x22 2x12/88 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3015-E-0210-150-D 230 2x25.0 2x15/70 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3015-E-0210-180-D 230 2x30.0 2x18/58 1+5/6+7-9+10 2 ta70℃/F       ●
AF3015-E-0210-240-D 230 2x40.0 2x24/44 1+5/6+7-9+10 2 ta70℃/F       ●
AF3015-U-0210-060-S 115 10.5  6/350 1+5/7+9 1 ta70℃/F   ●   ●
AF3015-U-0210-090-S 115 16.0  9/233 1+5/7+9 1 ta70℃/F   ●   ●
AF3015-U-0210-120-S 115 21.5  12/175 1+5/7+9 1 ta70℃/F   ●   ●
AF3015-U-0210-150-S 115 26.5  15/140 1+5/7+9 1 ta70℃/F   ●   ●
AF3015-U-0210-180-S 115 30.0  18/117 1+5/7+9 1 ta70℃/F   ●   ●
AF3015-U-0210-240-S 115 37.3  24/88 1+5/7+9 1 ta70℃/F   ●   ●
AF3015-U-0210-060-D 115 2x11.2 2x6/175 1+5/6+7-9+10 2 ta70℃/F       ●
AF3015-U-0210-075-D 115 2x14.2 2x7.5/140 1+5/6+7-9+10 2 ta70℃/F       ●
AF3015-U-0210-090-D 115 2x16.2 2x9/117 1+5/6+7-9+10 2 ta70℃/F       ●
AF3015-U-0210-120-D 115 2x22 2x12/88 1+5/6+7-9+10 2 ta70℃/F       ●
AF3015-U-0210-150-D 115 2x25.0 2x15/70 1+5/6+7-9+10 2 ta70℃/F       ●
AF3015-U-0210-180-D 115 2x30.0 2x18/58 1+5/6+7-9+10 2 ta70℃/F       ●
AF3015-U-0210-240-D 115 2x40.0 2x24/44 1+5/6+7-9+10 2 ta70℃/F       ●
AF3015-U2-0210-060-S 2x115 10.5  6/350 1+2-4+5/7+9 3 ta70℃/F       ●
AF3015-U2-0210-090-S 2x115 16.0  9/233 1+2-4+5/7+9 3 ta70℃/F       ●
AF3015-U2-0210-120-S 2x115 21.5  12/175 1+2-4+5/7+9 3 ta70℃/F       ●
AF3015-U2-0210-150-S 2x115 26.5  15/140 1+2-4+5/7+9 3 ta70℃/F       ●
AF3015-U2-0210-180-S 2x115 30.0  18/117 1+2-4+5/7+9 3 ta70℃/F       ●
AF3015-U2-0210-240-S 2x115 37.3  24/88 1+2-4+5/7+9 3 ta70℃/F       ●
AF3015-U2-0210-060-D 2x115 2x11.2 2x6/175 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3015-U2-0210-090-D 2x115 2x16.2 2x9/117 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3015-U2-0210-120-D 2x115 2x22.0 2x12/88 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3015-U2-0210-150-D 2x115 2x25.0 2x15/70 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3015-U2-0210-180-D 2x115 2x30.0 2x18/58 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3015-U2-0210-240-D 2x115 2x40.0 2x24/44 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
   EI30×15.5 2.3VA  VDE UL CQC CE
AF3015-E-0230-060-S 230 10.5  6/383 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3015-E-0230-090-S 230 15.5  9/256 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3015-E-0230-120-S 230 21.0  12/192 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3015-E-0230-150-S 230 25.3  15/153 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3015-E-0230-180-S 230 31.0  18/128 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3015-E-0230-240-S 230 42.0  24/96 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3015-E-0230-060-D 230 2x10.5 2x6/192 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3015-E-0230-075-D 230 2x12.5 2x7.5/153 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3015-E-0230-090-D 230 2x15.5 2x9/128 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3015-E-0230-120-D 230 2x21.0 2x12/96 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3015-E-0230-150-D 230 2x25.0 2x15/77 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3015-E-0230-180-D 230 2x31.0 2x18/64 1+5/6+7-9+10 2 ta70℃/F       ●
AF3015-E-0230-240-D 230 2x42.0 2x24/48 1+5/6+7-9+10 2 ta70℃/F       ●
AF3015-U-0230-060-S 115 10.5  6/383 1+5/7+9 1 ta70℃/F   ●   ●
AF3015-U-0230-090-S 115 15.5  9/256 1+5/7+9 1 ta70℃/F   ●   ●
AF3015-U-0230-120-S 115 21.0  12/192 1+5/7+9 1 ta70℃/F   ●   ●
AF3015-U-0230-150-S 115 25.3  15/153 1+5/7+9 1 ta70℃/F   ●   ●
AF3015-U-0230-180-S 115 31.0  18/128 1+5/7+9 1 ta70℃/F   ●   ●
AF3015-U-0230-240-S 115 42.0  24/96 1+5/7+9 1 ta70℃/F   ●   ●
AF3015-U-0230-060-D 115 2x10.5 2x6/192 1+5/6+7-9+10 2 ta70℃/F       ●
AF3015-U-0230-075-D 115 2x12.5 2x7.5/153 1+5/6+7-9+10 2 ta70℃/F       ●
AF3015-U-0230-090-D 115 2x15.5 2x9/128 1+5/6+7-9+10 2 ta70℃/F       ●
AF3015-U-0230-120-D 115 2x21.0 2x12/96 1+5/6+7-9+10 2 ta70℃/F       ●
AF3015-U-0230-150-D 115 2x25.0 2x15/77 1+5/6+7-9+10 2 ta70℃/F       ●
AF3015-U-0230-180-D 115 2x31.0 2x18/64 1+5/6+7-9+10 2 ta70℃/F       ●
AF3015-U-0230-240-D 115 2x42.0 2x24/48 1+5/6+7-9+10 2 ta70℃/F       ●
AF3015-U2-0230-060-S 2x115 10.5  6/383 1+2-4+5/7+9 3 ta70℃/F       ●
AF3015-U2-0230-090-S 2x115 15.5  9/256 1+2-4+5/7+9 3 ta70℃/F       ●
AF3015-U2-0230-120-S 2x115 21.0  12/192 1+2-4+5/7+9 3 ta70℃/F       ●
AF3015-U2-0230-150-S 2x115 25.3  15/153 1+2-4+5/7+9 3 ta70℃/F       ●
AF3015-U2-0230-180-S 2x115 31.0  18/128 1+2-4+5/7+9 3 ta70℃/F       ●
AF3015-U2-0230-240-S 2x115 42.0  24/96 1+2-4+5/7+9 3 ta70℃/F       ●
AF3015-U2-0230-060-D 2x115 2x10.5 2x6/192 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3015-U2-0230-090-D 2x115 2x15.5 2x9/128 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3015-U2-0230-120-D 2x115 2x21.0 2x12/96 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3015-U2-0230-150-D 2x115 2x25.0 2x15/77 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3015-U2-0230-180-D 2x115 2x31.0 2x18/64 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3015-U2-0230-240-D 2x115 2x42.0 2x24/48 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
   EI30×18 2.3VA  VDE UL CQC CE
AF3018-E-0230-060-S 230 10.5  6/383 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3018-E-0230-090-S 230 15.7  9/256 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3018-E-0230-120-S 230 21.0  12/192 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3018-E-0230-150-S 230 25.5  15/153 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3018-E-0230-180-S 230 31.5  18/128 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3018-E-0230-240-S 230 42.0  24/96 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3018-E-0230-060-D 230 2x10.5 2x6/192 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3018-E-0230-075-D 230 2x13.0 2x7.5/153 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3018-E-0230-090-D 230 2x15.7 2x9/128 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3018-E-0230-120-D 230 2x21.0 2x12/96 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3018-E-0230-150-D 230 2x25.0 2x15/77 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3018-E-0230-180-D 230 2x31.5 2x18/64 1+5/6+7-9+10 2 ta70℃/F       ●
AF3018-E-0230-240-D 230 2x42.0 2x24/48 1+5/6+7-9+10 2 ta70℃/F       ●
AF3018-U-0230-060-S 115 10.5  6/383 1+5/7+9 1 ta70℃/F   ●   ●
AF3018-U-0230-090-S 115 15.7  9/256 1+5/7+9 1 ta70℃/F   ●   ●
AF3018-U-0230-120-S 115 21.0  12/192 1+5/7+9 1 ta70℃/F   ●   ●
AF3018-U-0230-150-S 115 25.5  15/153 1+5/7+9 1 ta70℃/F   ●   ●
AF3018-U-0230-180-S 115 31.5  18/128 1+5/7+9 1 ta70℃/F   ●   ●
AF3018-U-0230-240-S 115 42.0  24/96 1+5/7+9 1 ta70℃/F   ●   ●
AF3018-U-0230-060-D 115 2x10.5 2x6/192 1+5/6+7-9+10 2 ta70℃/F       ●
AF3018-U-0230-075-D 115 2x13.0 2x7.5/153 1+5/6+7-9+10 2 ta70℃/F       ●
AF3018-U-0230-090-D 115 2x15.7 2x9/128 1+5/6+7-9+10 2 ta70℃/F       ●
AF3018-U-0230-120-D 115 2x21.0 2x12/96 1+5/6+7-9+10 2 ta70℃/F       ●
AF3018-U-0230-150-D 115 2x25.0 2x15/77 1+5/6+7-9+10 2 ta70℃/F       ●
AF3018-U-0230-180-D 115 2x31.5 2x18/64 1+5/6+7-9+10 2 ta70℃/F       ●
AF3018-U-0230-240-D 115 2x42.0 2x24/48 1+5/6+7-9+10 2 ta70℃/F       ●
AF3018-U2-0230-060-S 2x115 10.5  6/383 1+2-4+5/7+9 3 ta70℃/F       ●
AF3018-U2-0230-090-S 2x115 15.7  9/256 1+2-4+5/7+9 3 ta70℃/F       ●
AF3018-U2-0230-120-S 2x115 21.0  12/192 1+2-4+5/7+9 3 ta70℃/F       ●
AF3018-U2-0230-150-S 2x115 25.5  15/153 1+2-4+5/7+9 3 ta70℃/F       ●
AF3018-U2-0230-180-S 2x115 31.5  18/128 1+2-4+5/7+9 3 ta70℃/F       ●
AF3018-U2-0230-240-S 2x115 42.0  24/96 1+2-4+5/7+9 3 ta70℃/F       ●
AF3018-U2-0230-060-D 2x115 2x10.5 2x6/192 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3018-U2-0230-090-D 2x115 2x15.7 2x9/128 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3018-U2-0230-120-D 2x115 2x21.0 2x12/96 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3018-U2-0230-150-D 2x115 2x25.0 2x15/77 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3018-U2-0230-180-D 2x115 2x31.5 2x18/64 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3018-U2-0230-240-D 2x115 2x42.0 2x24/48 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
   EI30×18 2.8VA  VDE UL CQC CE
AF3018-E-0280-060-S 230 10.8  6/467 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3018-E-0280-090-S 230 16.0  9/311 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3018-E-0280-120-S 230 21.6  12/233 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3018-E-0280-150-S 230 26.9  15/187 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3018-E-0280-180-S 230 31.5  18/156 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3018-E-0280-240-S 230 42.0  24/117 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3018-E-0280-060-D 230 2x10.8 2x6/233 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3018-E-0280-075-D 230 2x13.5 2x7.5/187 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3018-E-0280-090-D 230 2x16.0 2x9/156 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3018-E-0280-120-D 230 2x21.6 2x12/117 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3018-E-0280-150-D 230 2x25.0 2x15/93 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3018-E-0280-180-D 230 2x31.5 2x18/78 1+5/6+7-9+10 2 ta70℃/F       ●
AF3018-E-0280-240-D 230 2x42.0 2x24/58 1+5/6+7-9+10 2 ta70℃/F       ●
AF3018-U-0280-060-S 115 10.8  6/467 1+5/7+9 1 ta70℃/F   ●   ●
AF3018-U-0280-090-S 115 16.0  9/311 1+5/7+9 1 ta70℃/F   ●   ●
AF3018-U-0280-120-S 115 21.6  12/233 1+5/7+9 1 ta70℃/F   ●   ●
AF3018-U-0280-150-S 115 26.9  15/187 1+5/7+9 1 ta70℃/F   ●   ●
AF3018-U-0280-180-S 115 31.5  18/156 1+5/7+9 1 ta70℃/F   ●   ●
AF3018-U-0280-240-S 115 42.0  24/117 1+5/7+9 1 ta70℃/F   ●   ●
AF3018-U-0280-060-D 115 2x10.8 2x6/233 1+5/6+7-9+10 2 ta70℃/F       ●
AF3018-U-0280-075-D 115 2x13.5 2x7.5/187 1+5/6+7-9+10 2 ta70℃/F       ●
AF3018-U-0280-090-D 115 2x16.0 2x9/156 1+5/6+7-9+10 2 ta70℃/F       ●
AF3018-U-0280-120-D 115 2x21.6 2x12/117 1+5/6+7-9+10 2 ta70℃/F       ●
AF3018-U-0280-150-D 115 2x25.0 2x15/93 1+5/6+7-9+10 2 ta70℃/F       ●
AF3018-U-0280-180-D 115 2x31.5 2x18/78 1+5/6+7-9+10 2 ta70℃/F       ●
AF3018-U-0280-240-D 115 2x42.0 2x24/58 1+5/6+7-9+10 2 ta70℃/F       ●
AF3018-U2-0280-060-S 2x115 10.8  6/467 1+2-4+5/7+9 3 ta70℃/F       ●
AF3018-U2-0280-090-S 2x115 16.0  9/311 1+2-4+5/7+9 3 ta70℃/F       ●
AF3018-U2-0280-120-S 2x115 21.6  12/233 1+2-4+5/7+9 3 ta70℃/F       ●
AF3018-U2-0280-150-S 2x115 26.9  15/187 1+2-4+5/7+9 3 ta70℃/F       ●
AF3018-U2-0280-180-S 2x115 31.5  18/156 1+2-4+5/7+9 3 ta70℃/F       ●
AF3018-U2-0280-240-S 2x115 42.0  24/117 1+2-4+5/7+9 3 ta70℃/F       ●
AF3018-U2-0280-060-D 2x115 2x10.8 2x6/233 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3018-U2-0280-090-D 2x115 2x16.0 2x9/156 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3018-U2-0280-120-D 2x115 2x21.6 2x12/117 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3018-U2-0280-150-D 2x115 2x25.0 2x15/93 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3018-U2-0280-180-D 2x115 2x31.5 2x18/78 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3018-U2-0280-240-D 2x115 2x42.0 2x24/58 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
   EI30×23 3.0VA  VDE UL CQC CE
AF3023-E-0300-060-S 230 10.8  6/500 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3023-E-0300-090-S 230 16.0  9/333 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3023-E-0300-120-S 230 21.6  12/250 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3023-E-0300-150-S 230 26.9  15/200 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3023-E-0300-180-S 230 31.5  18/167 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3023-E-0300-240-S 230 42.0  24/125 1+5/7+9 1 ta70℃/F ● ● ● ●
AF3023-E-0300-060-D 230 2x10.8 2x6/250 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3023-E-0300-075-D 230 2x13.5 2x7.5/200 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3023-E-0300-090-D 230 2x16.0 2x9/167 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3023-E-0300-120-D 230 2x21.6 2x12/125 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3023-E-0300-150-D 230 2x25.0 2x15/100 1+5/6+7-9+10 2 ta70℃/F ●   ● ●
AF3023-E-0300-180-D 230 2x31.5 2x18/83 1+5/6+7-9+10 2 ta70℃/F       ●
AF3023-E-0300-240-D 230 2x42.0 2x24/63 1+5/6+7-9+10 2 ta70℃/F       ●
AF3023-U-0300-060-S 115 10.8  6/500 1+5/7+9 1 ta70℃/F   ●   ●
AF3023-U-0300-090-S 115 16.0  9/333 1+5/7+9 1 ta70℃/F   ●   ●
AF3023-U-0300-120-S 115 21.6  12/250 1+5/7+9 1 ta70℃/F   ●   ●
AF3023-U-0300-150-S 115 26.9  15/200 1+5/7+9 1 ta70℃/F   ●   ●
AF3023-U-0300-180-S 115 31.5  18/167 1+5/7+9 1 ta70℃/F   ●   ●
AF3023-U-0300-240-S 115 42.0  24/125 1+5/7+9 1 ta70℃/F   ●   ●
AF3023-U-0300-060-D 115 2x10.8 2x6/250 1+5/6+7-9+10 2 ta70℃/F       ●
AF3023-U-0300-075-D 115 2x13.5 2x7.5/200 1+5/6+7-9+10 2 ta70℃/F       ●
AF3023-U-0300-090-D 115 2x16.0 2x9/167 1+5/6+7-9+10 2 ta70℃/F       ●
AF3023-U-0300-120-D 115 2x21.6 2x12/125 1+5/6+7-9+10 2 ta70℃/F       ●
AF3023-U-0300-150-D 115 2x25.0 2x15/100 1+5/6+7-9+10 2 ta70℃/F       ●
AF3023-U-0300-180-D 115 2x31.5 2x18/83 1+5/6+7-9+10 2 ta70℃/F       ●
AF3023-U-0300-240-D 115 2x42.0 2x24/63 1+5/6+7-9+10 2 ta70℃/F       ●
AF3023-U2-0300-060-S 2x115 10.8  6/500 1+2-4+5/7+9 3 ta70℃/F       ●
AF3023-U2-0300-090-S 2x115 16.0  9/333 1+2-4+5/7+9 3 ta70℃/F       ●
AF3023-U2-0300-120-S 2x115 21.6  12/250 1+2-4+5/7+9 3 ta70℃/F       ●
AF3023-U2-0300-150-S 2x115 26.9  15/200 1+2-4+5/7+9 3 ta70℃/F       ●
AF3023-U2-0300-180-S 2x115 31.5  18/167 1+2-4+5/7+9 3 ta70℃/F       ●
AF3023-U2-0300-240-S 2x115 42.0  24/125 1+2-4+5/7+9 3 ta70℃/F       ●
AF3023-U2-0300-060-D 2x115 2x10.8 2x6/250 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3023-U2-0300-090-D 2x115 2x16.0 2x9/167 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3023-U2-0300-120-D 2x115 2x21.6 2x12/125 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3023-U2-0300-150-D 2x115 2x25.0 2x15/100 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3023-U2-0300-180-D 2x115 2x31.5 2x18/83 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
AF3023-U2-0300-240-D 2x115 2x42.0 2x24/63 1+2-4+5/6+7-9+10 4 ta70℃/F       ●
